- Proposional Control
- 4 wheels drive
Optional
- Flashing warning light
- Control box protection cap
- 230v suply whit pulg on the flatform
- 230v suply with plug on the platform with earth-leakage circuit breaker
- Oscilating axle
- Electrict pump 12v for electric emergrency control
- 4 simutaneous lifthing control

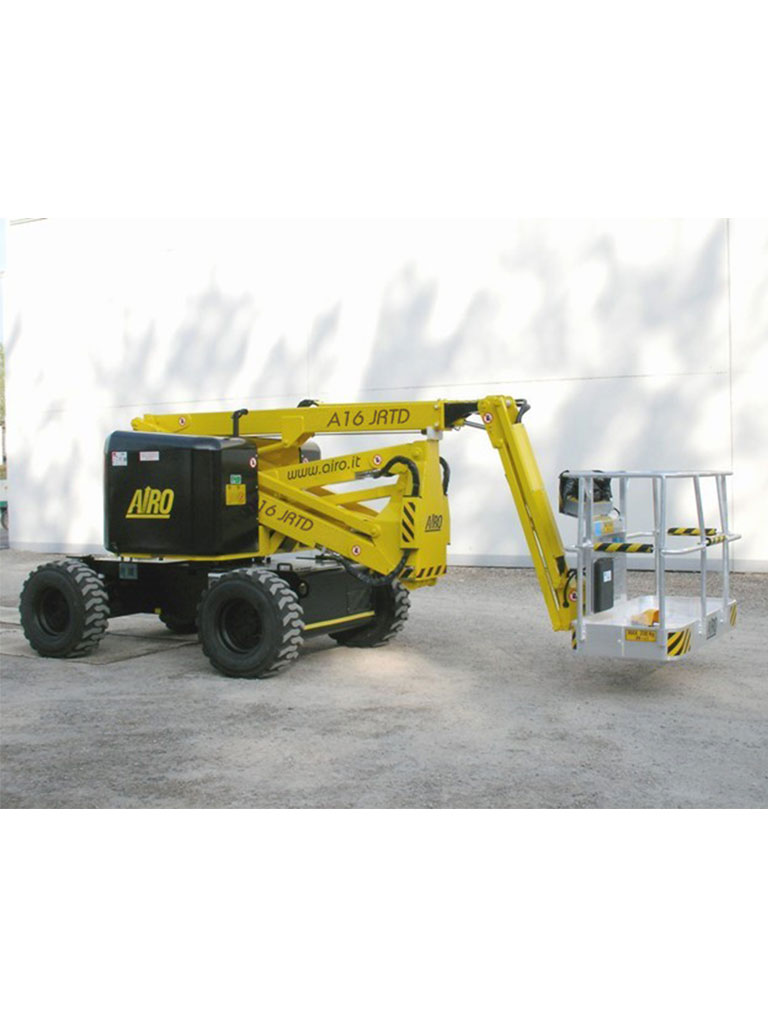

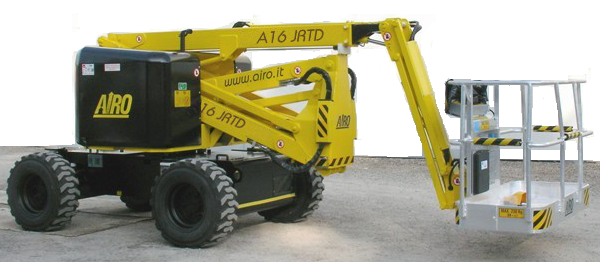

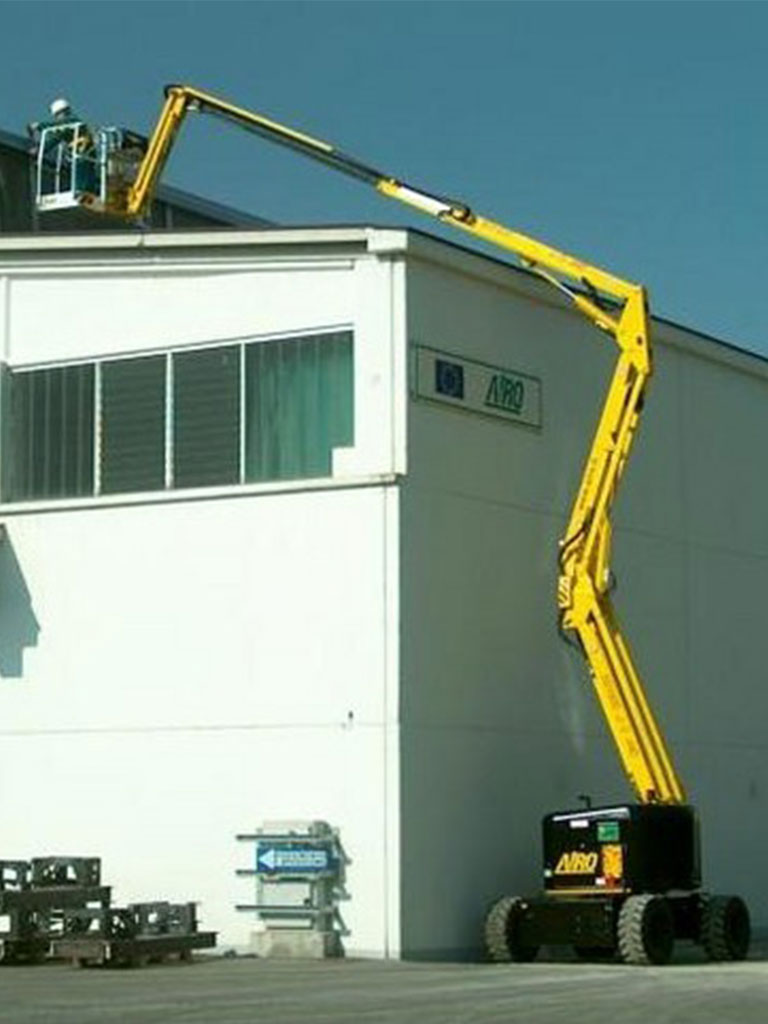

| A-Diesel 4WD Range | A16 JRTD | A18 JRTD | |
|---|---|---|---|
| Max Platform Heigth | mm | 14000 | 15750 |
| Max. Working Height | mm | 16000 | 17760 |
| Total Capacity | kg | 230 | 230 |
| Max Working Outreache | m | 8,1 | 9,9 |
| Degree Turet Rotation | 180° + 180° | 180° + 180° | |
| Hydrolic Cage Rotation | 70° + 70° | 70° + 70° | |
| Power | Diesel 36kw | Diesel 36kw | |
| Starter battery | V/ah | 12/132 | 12/132 |
| Gradeability | % | 40 | 40 |
| Total Weight | Kg | 7160 | 8100 |
