A-Diesel 4WD Range

  • Proposional Control
  • 4 wheels drive, 4 wheels steering
  • Oscillating axle
  • Double Platform capacity
  • 400kg/300kg including 3 persons
  • Integrated diagnosic control system with ground controls via touch display (Advanced Touch Control System)


  • Flashing warning light
  • Rigid control box protection with tool try and USB port for mobile phone charging
  • 230v suply with pulg on the flatform
  • 230v suply with plug on the platform with earth-leakage circuit breaker
  • Rotating horisontal jib 180°
  • Steel basket 900x1800mm
  • Steel basket 900x2400mm
  • SENTINEL-secondary protectioin system

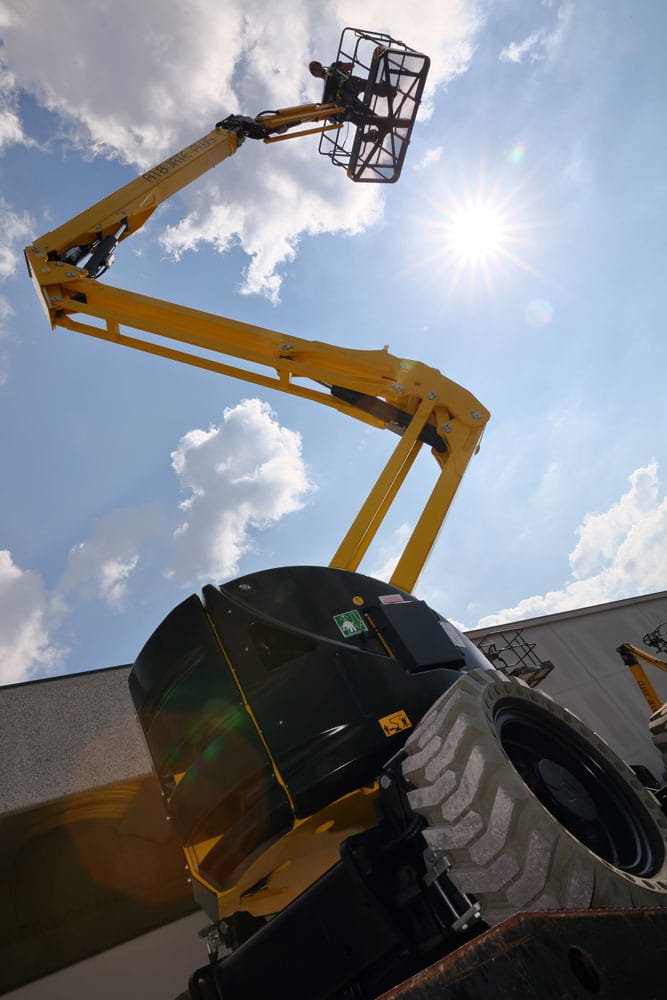

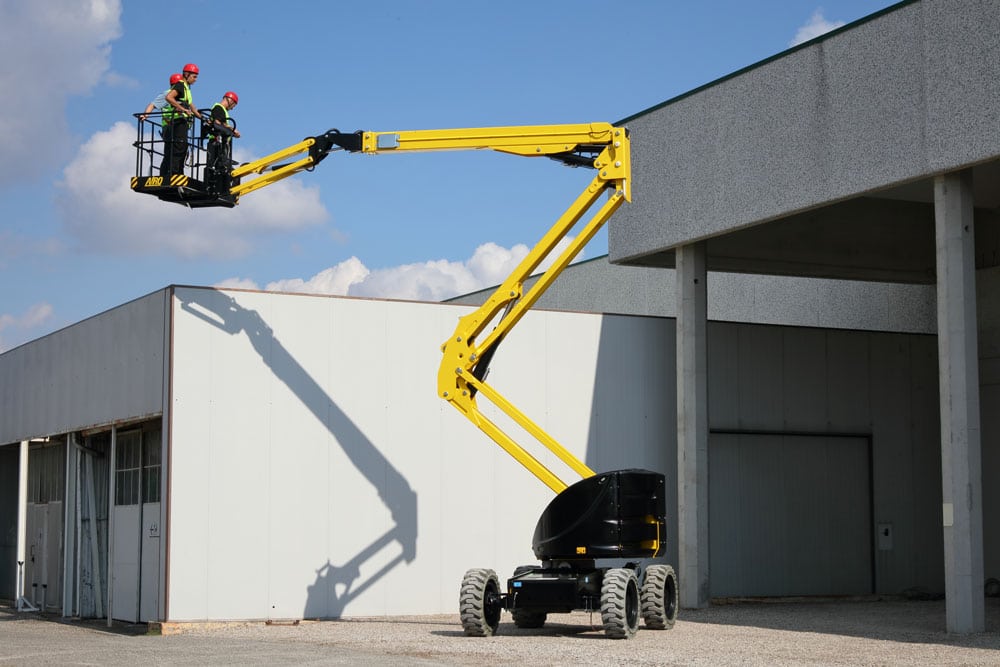

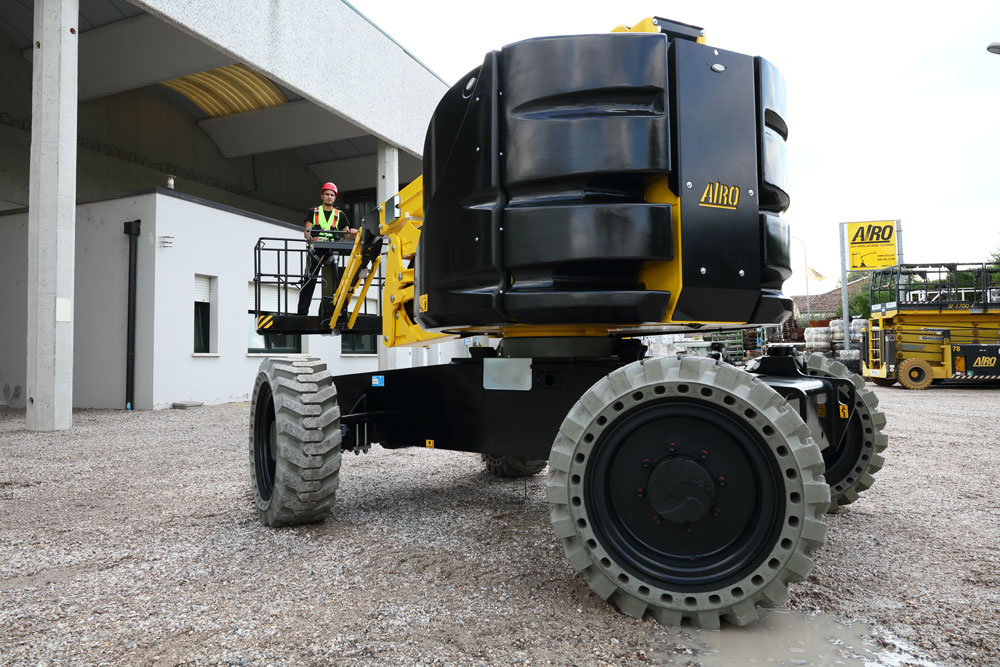

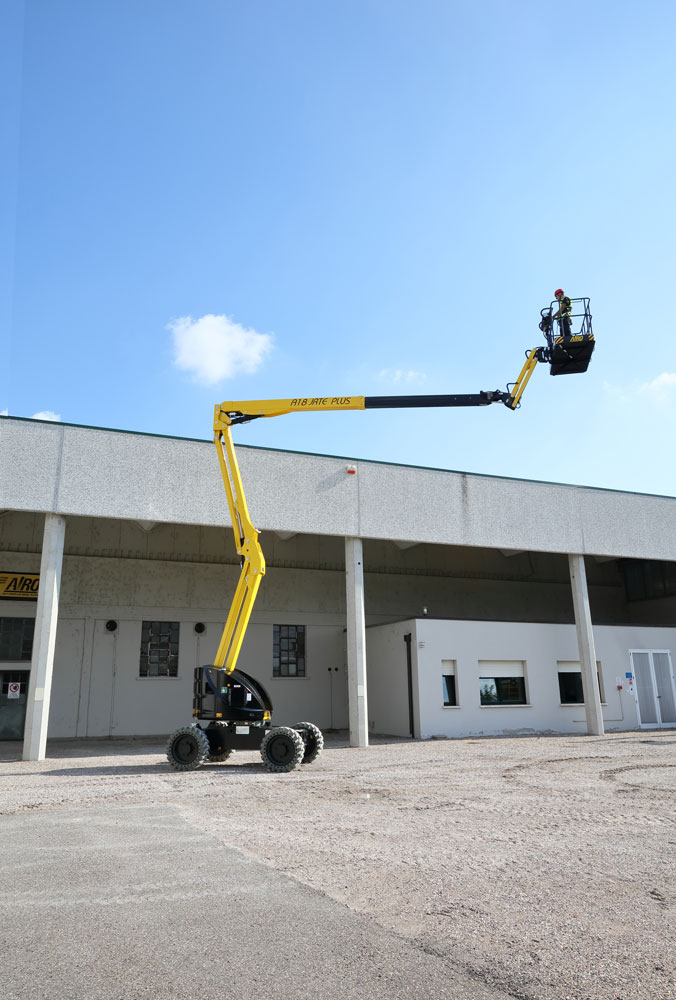

A-Diesel 4WD RangeA18 JRTD(NUOVA)
Max. plaform heightmm16450
Max., Working Heightmm18450
Total Capacitykg400/300
Max. working Outreachm9.2
Degree Turet Rotation355°
Hydrolic Cage Rotation180°
Starter batteryV/ah12/135
Gradeability %40
Total Weightkg8530
