- Proposional Control
- 4 Simulatenous lifting controls
- 4 wheels drive
Optional
- 180° rotating jib
- Control box protection cap
- Flashing warning light
- Control box protection cap
- 230v suply whit pulg on the flatform
- 230v suply with plug on the platform with earth-leakage circuit breaker
- “quick-up” and “qick-down” moves for steep lifthing and lowering

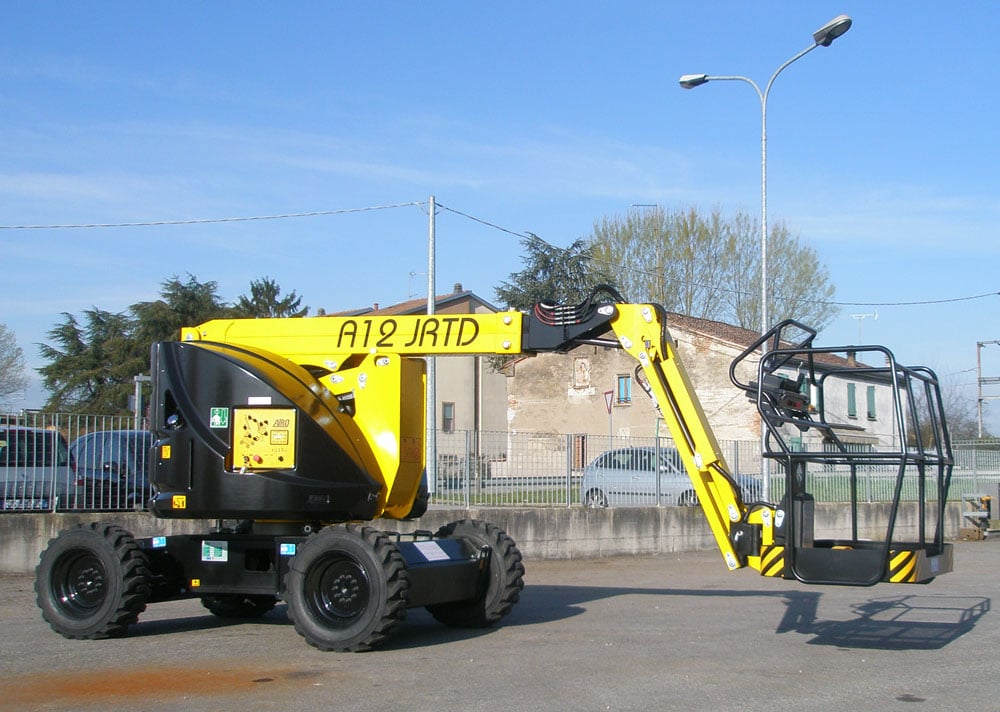

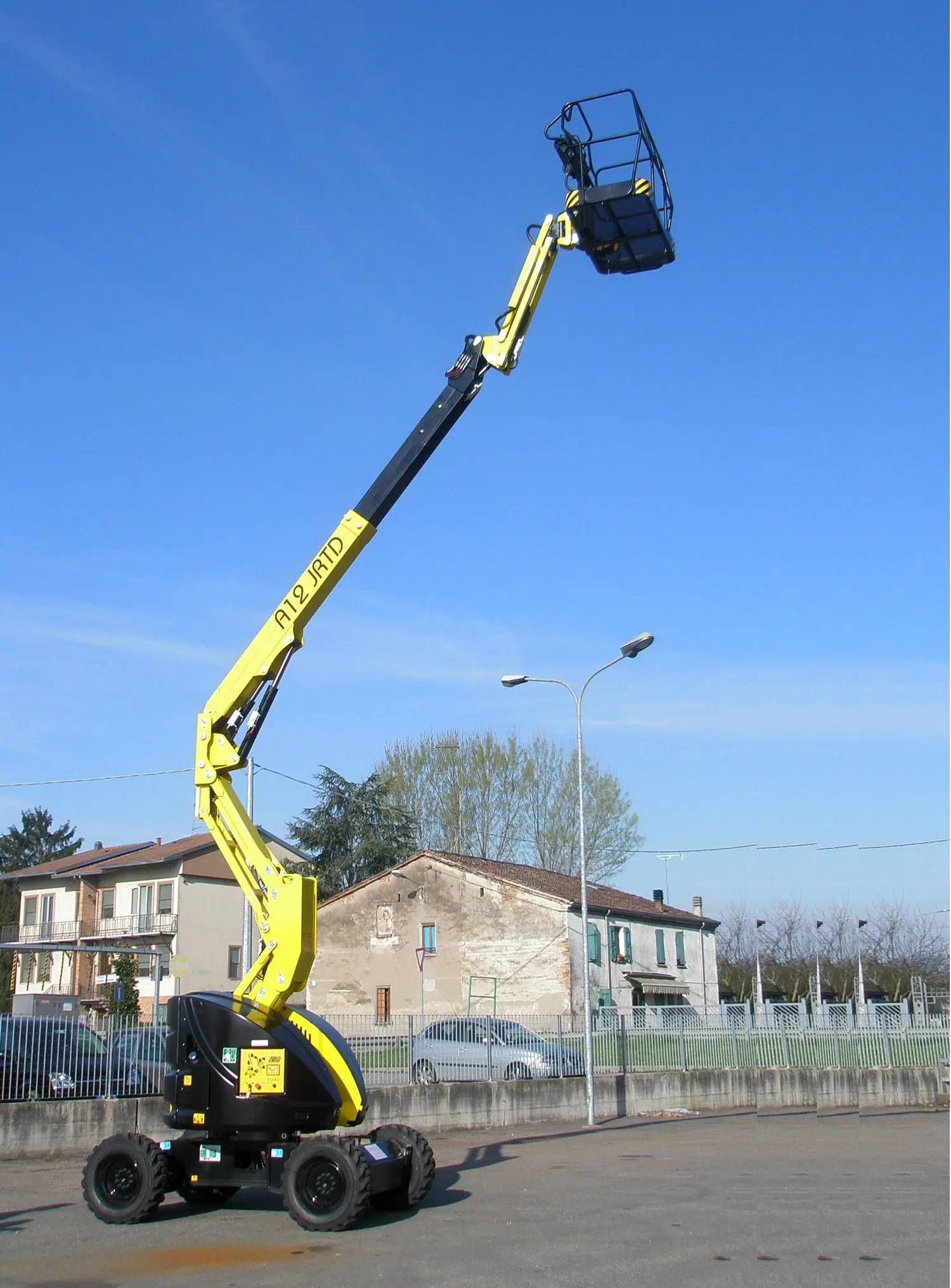

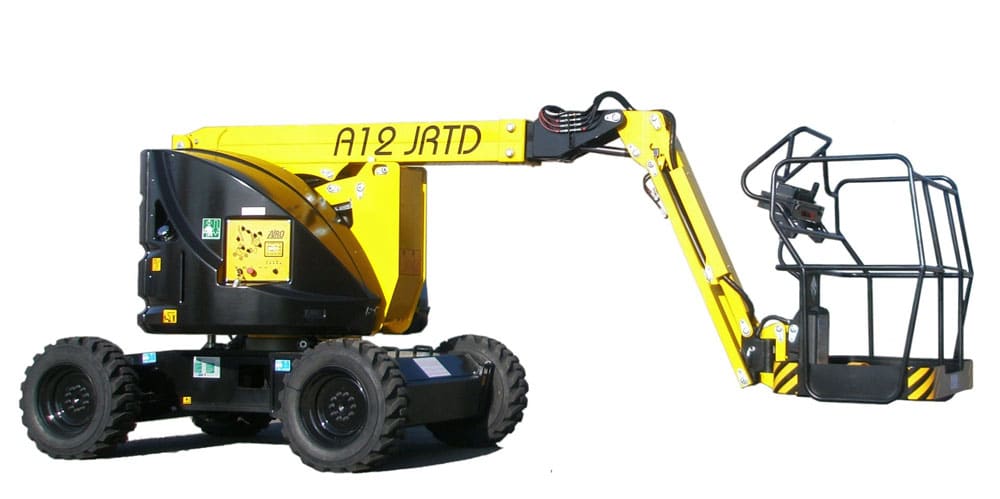

| A-Diesel 4WD Range | A12 JRTD | A15 JRTD | |
|---|---|---|---|
| Total Capacity | kg | 230 | 230 |
| Working Height | m | 12,20 | 15,10 |
| Max Working Outreach | m | 7.10 | 8.80 |
| Degree Turret Rotation | 370° | 370° | |
| Hydrolic Cage Rotation | 90° + 90° | 90° + 90° | |
| Cage Dimension | mm | 800×1400 | 800×1400 |
| Power | Diesel engine | Diesel engine | |
| Starter battery | V/ah | 12/132 | 12/132 |
| Oil Tank Capacity | l | 90 | 90 |
| Max Hydrolic Pressure | bar | 380/250 | 380/250 |
| Drive Speed (paassed) | Km/h | 6 | 6 |
| Security Speed | Km/h | 0.6 | 0.6 |
| Gradeability | % | 38 | 35 |
| Indside Turning Radius | m | 1,25 | 1,25 |
| Outside Turning Radius | m | 3.60 | 3.60 |
| Tired Type | – | 10×16.5 | 10×16.5 |
| Total Weight | kg | 5800 | 6630 |
