PEGASUS
50.21
5000 kg

MAXIMUM CAPACITY – MAXIMUM FLOW RATE

20,5 m

MAXIMUM LIFTING HEIGHT

107 kW (143 HP)

MAXIMUM POWER

PEGASUS

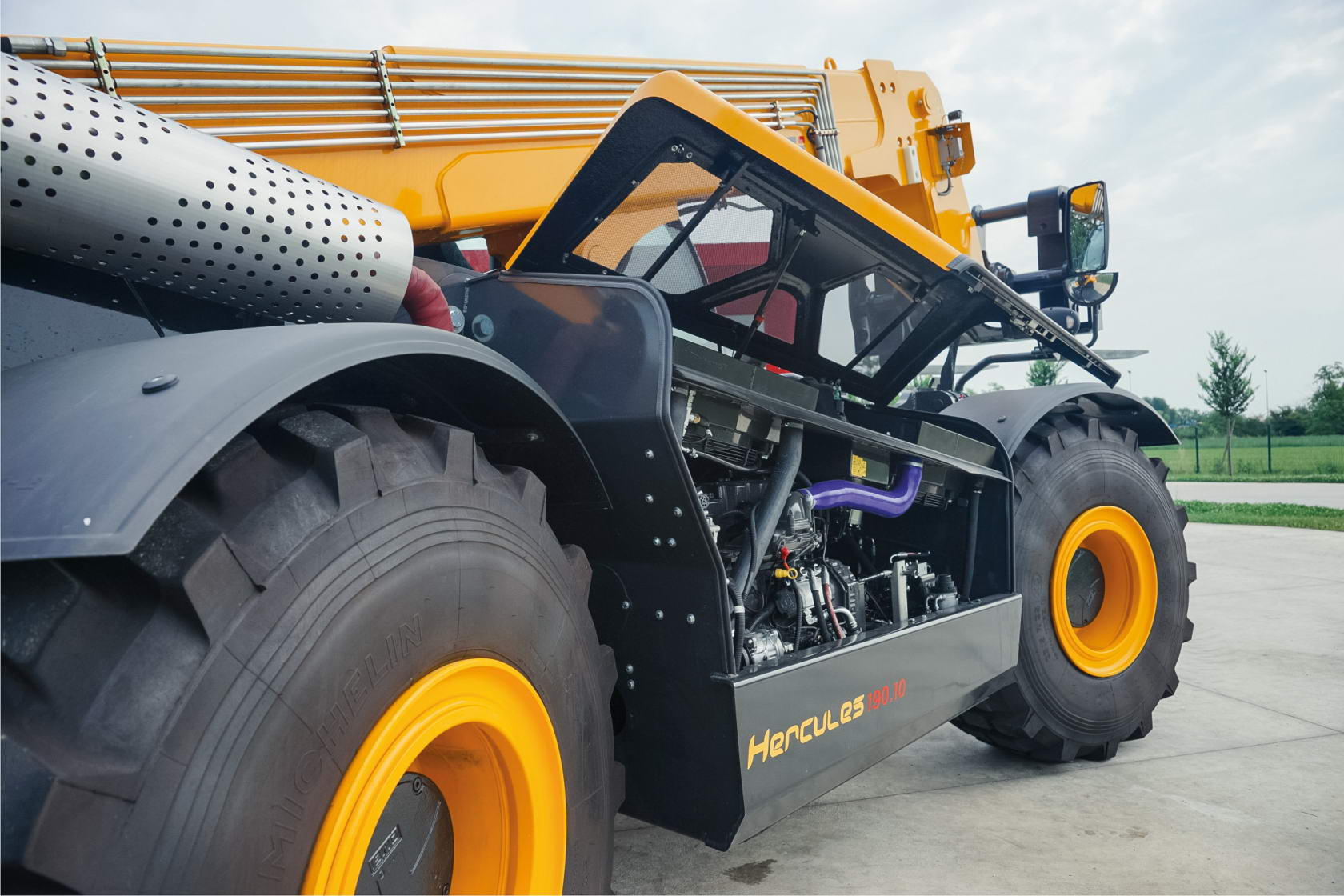

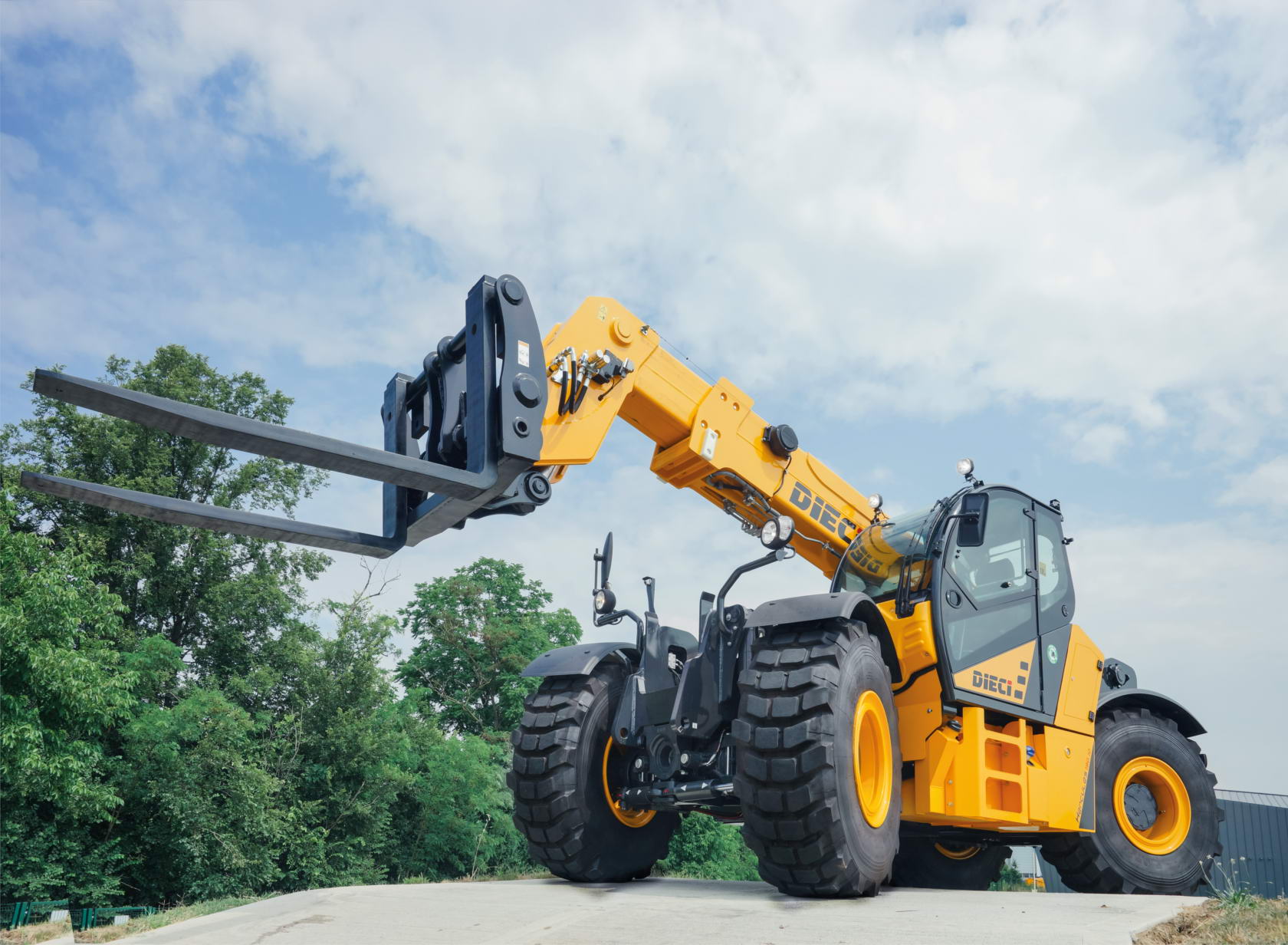

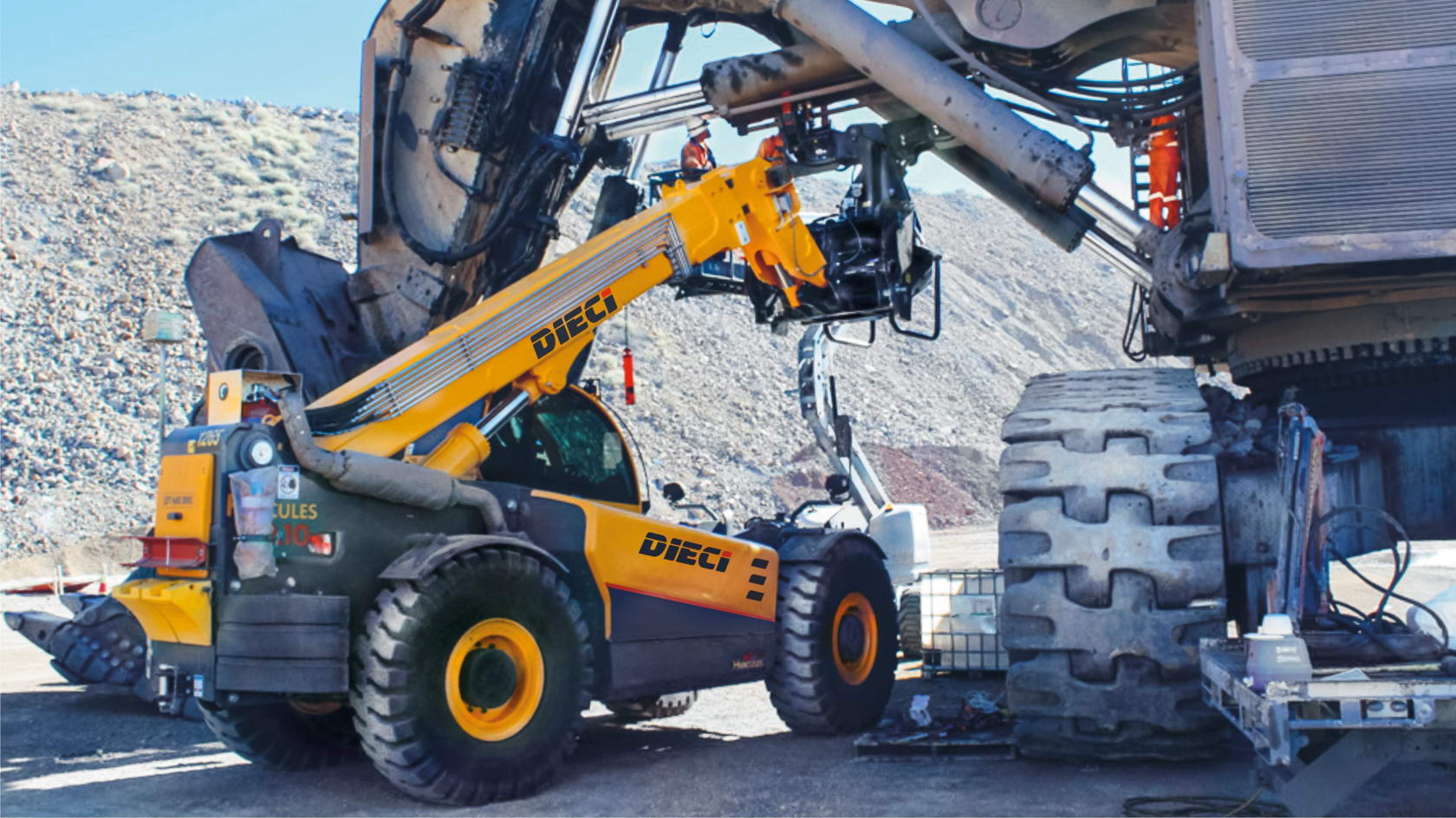

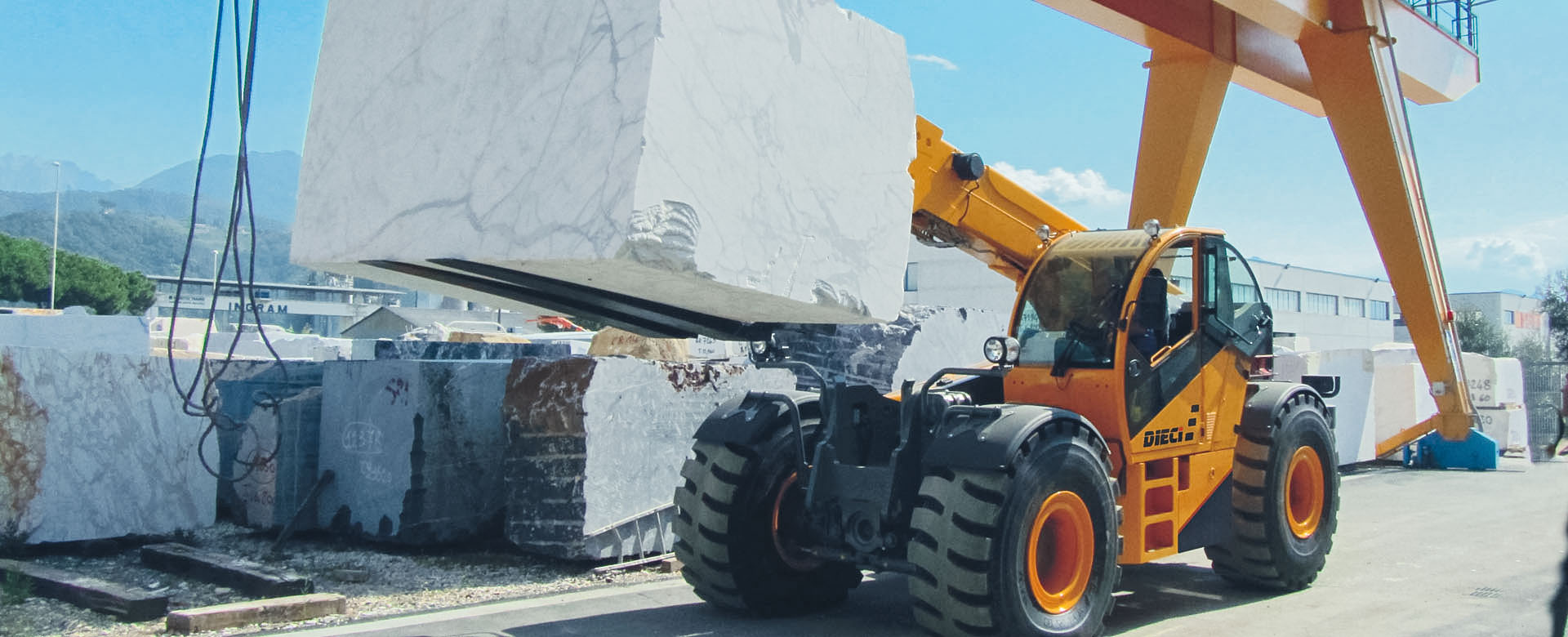

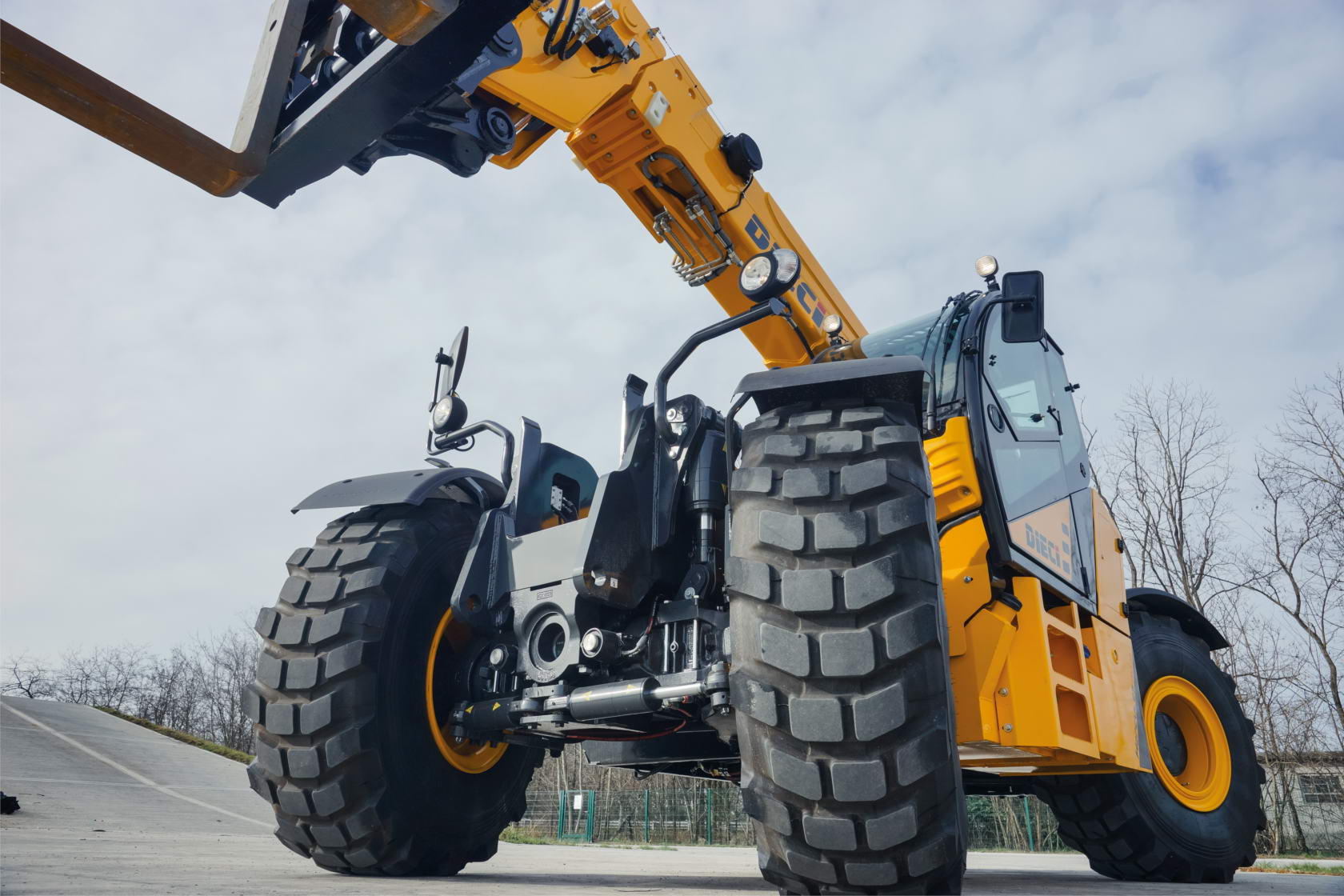

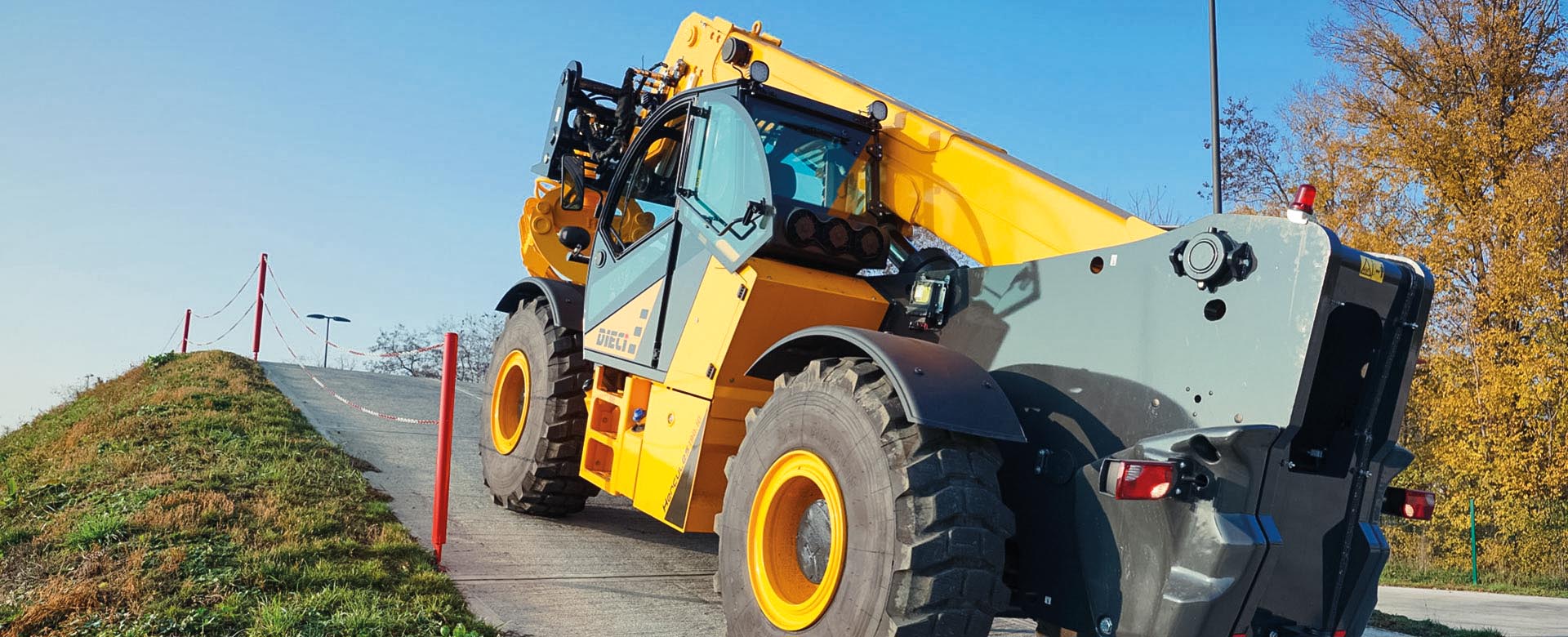

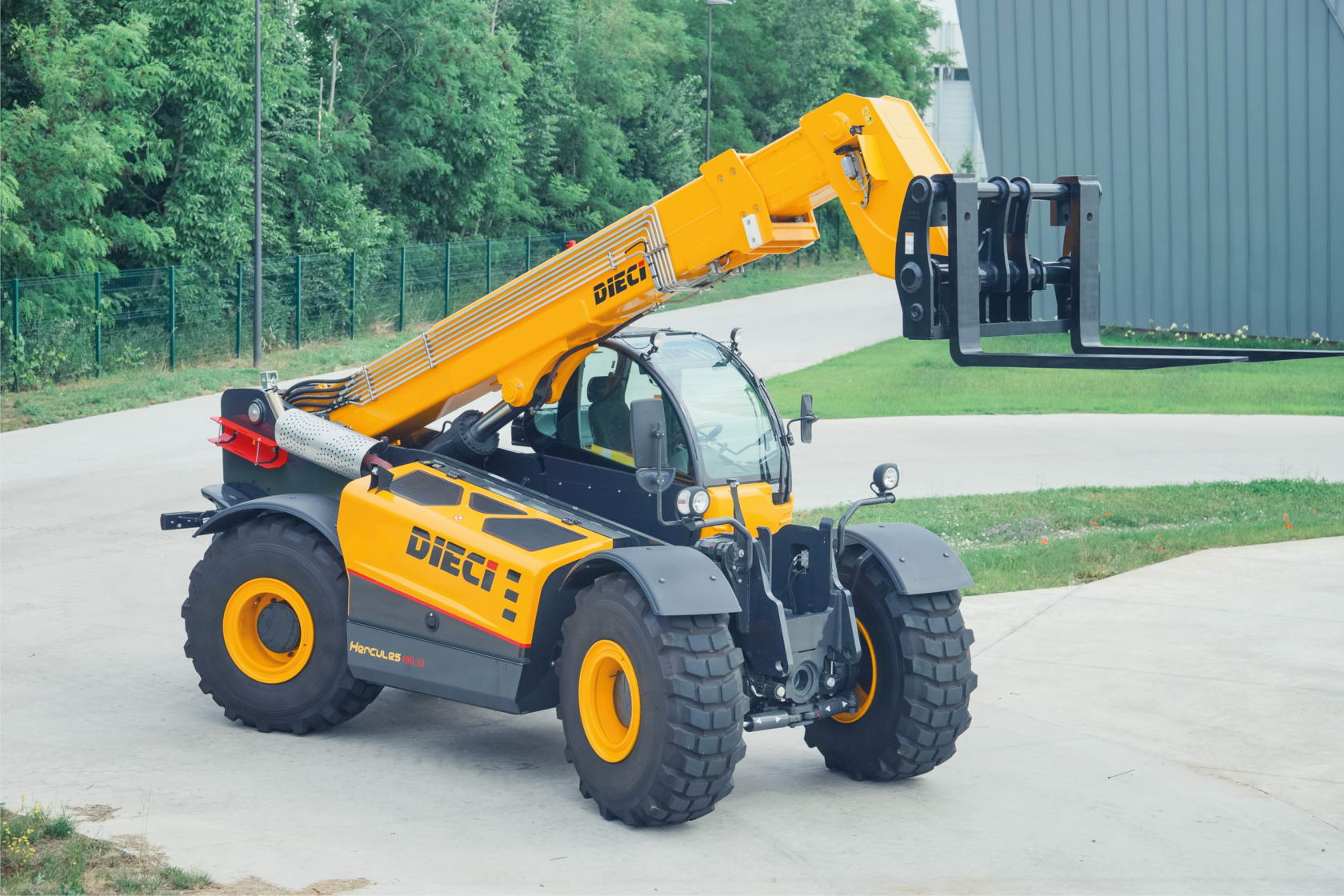

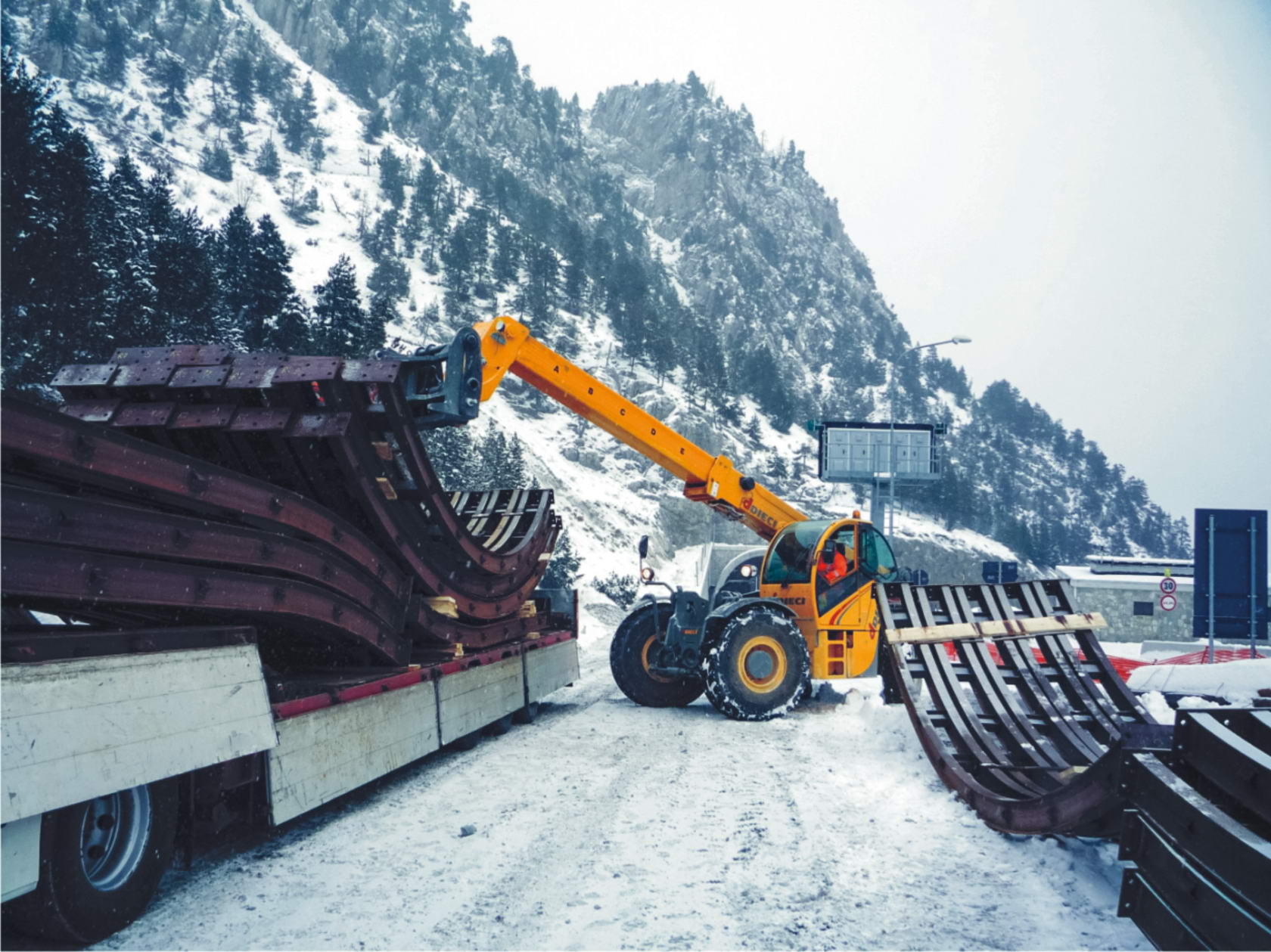

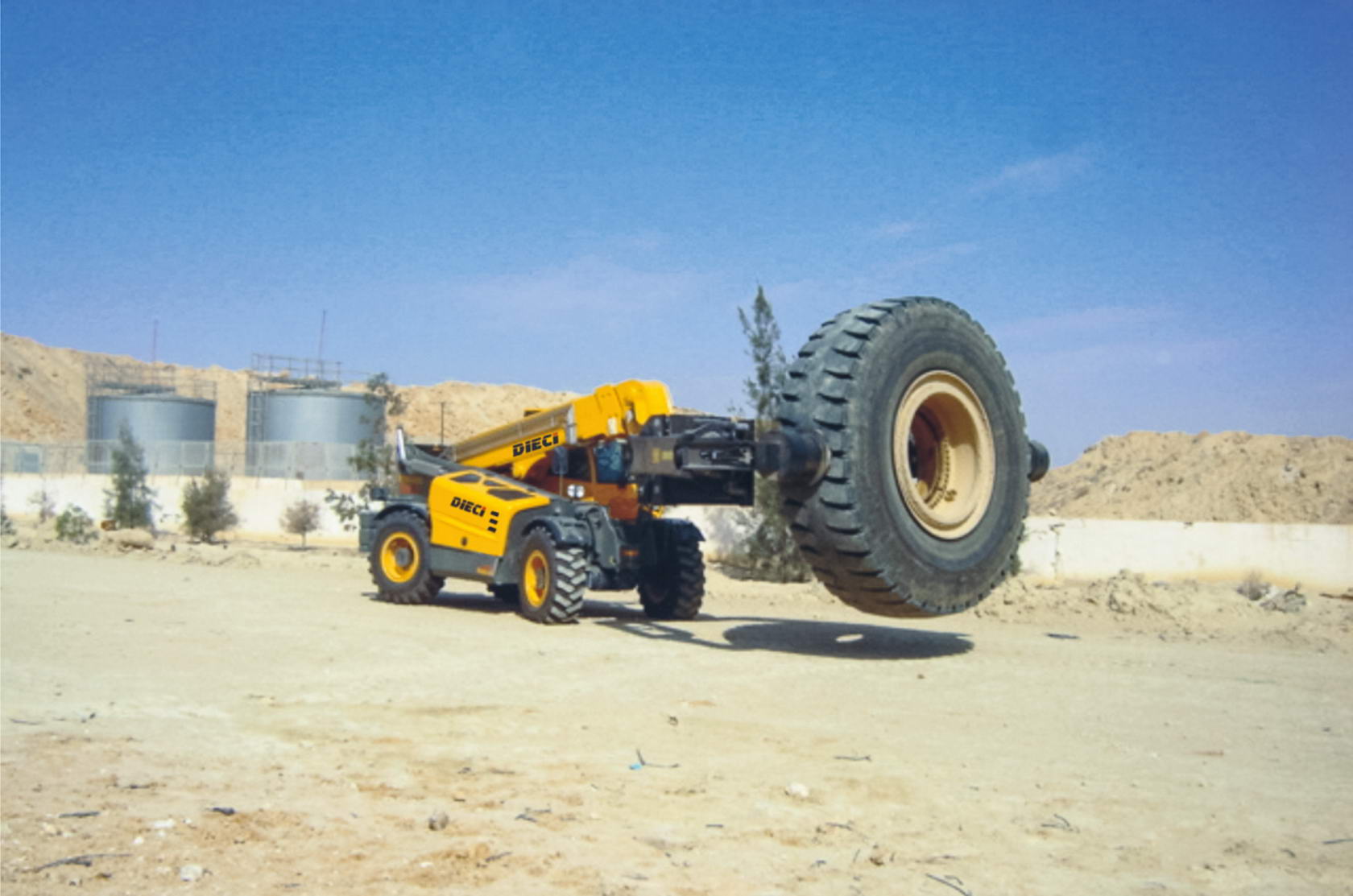

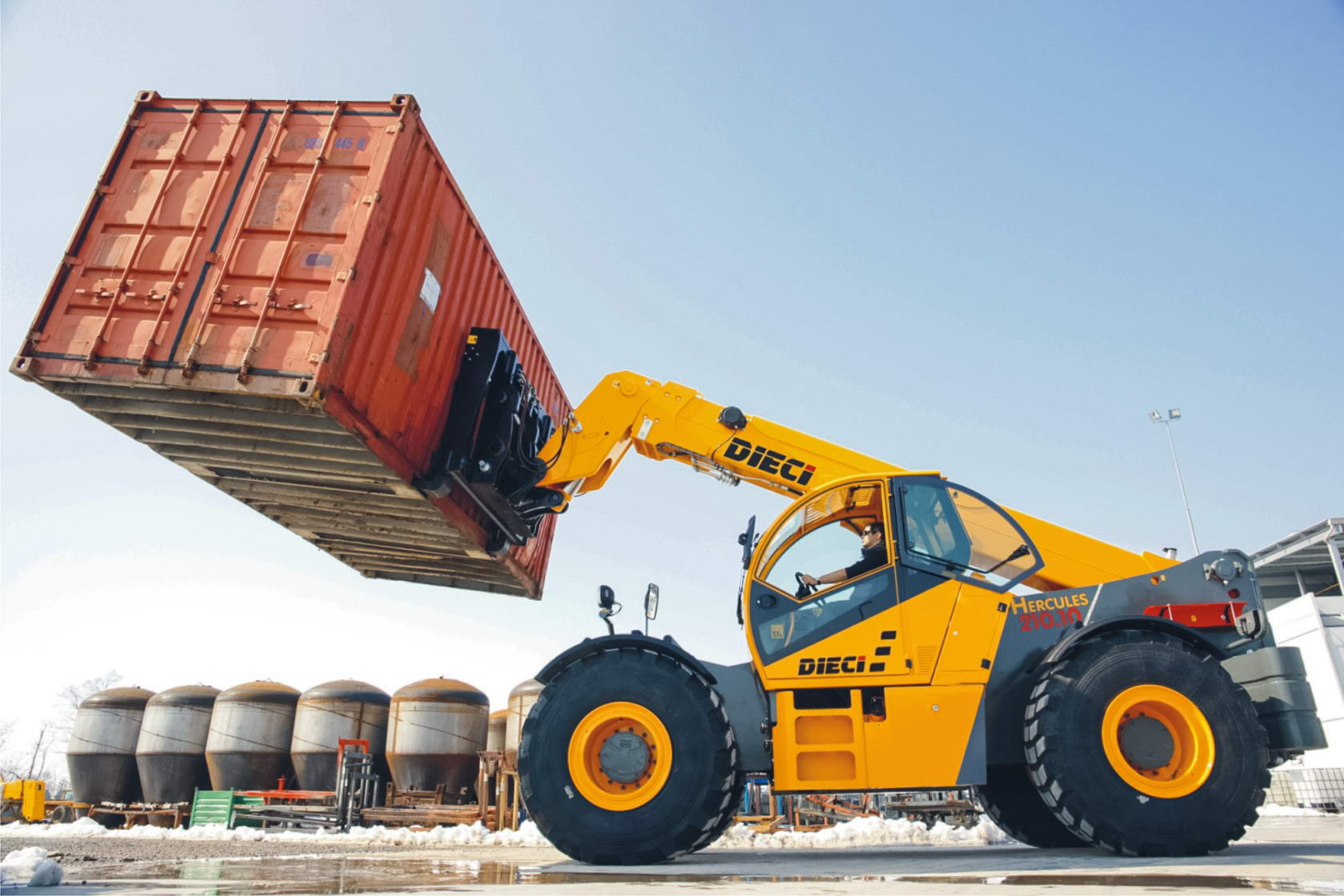

This range of powerful telehandlers, which are positioned in the “giants” market, include all the “pluses” related to safety, handling and comfort, in addition to highly advanced hydraulic solutions, able to use all of their strength in large construction sites, in mining sites and quarries, in harbors and shipbuilding yards, and “heavy” work in general. HERCULES can fit a wide range of accessories (winches, forks and buckets) or tools, finishes and ad hoc solutions, for specific needs.
It is equipped with pedal “INCHING” command (DIECI exclusive), which allows the vehicle to run at slow speed also with engine at full throttle.

Model

Dimension
Height from ground
360 mm
Maximum Length
7150 mm
Cab Height
3020 mm
Tire Width
2380 mm
While Curve Radius
4430 mm

Mass
Unladen Weight
17540 kg

Performance
Maximum capacity – Maximum flow rate
5000 kg
Maximum lifting height
20,3 m
Maximum Height on Outriggers
20,5 m
Maximum Height on Wheels
20,5 m
Pull Out Force
5700 daN
Towing Force
9400 daN
Maximum Speed
40 km/h

Engine
Brand
FPT
Fueling
Diesel
Displacement
4485 cm3
Maximum Power
107 kW (143 HP)
Emission Standard
Stage IIIA/Tier 3

Hydraulic Circuit
Hydraulic Pump Capacity
135 l/Min
Maximum Operating Pressure
23 MPa

Transmission
Transmission Type
Hydrostatic with variable displacement pump

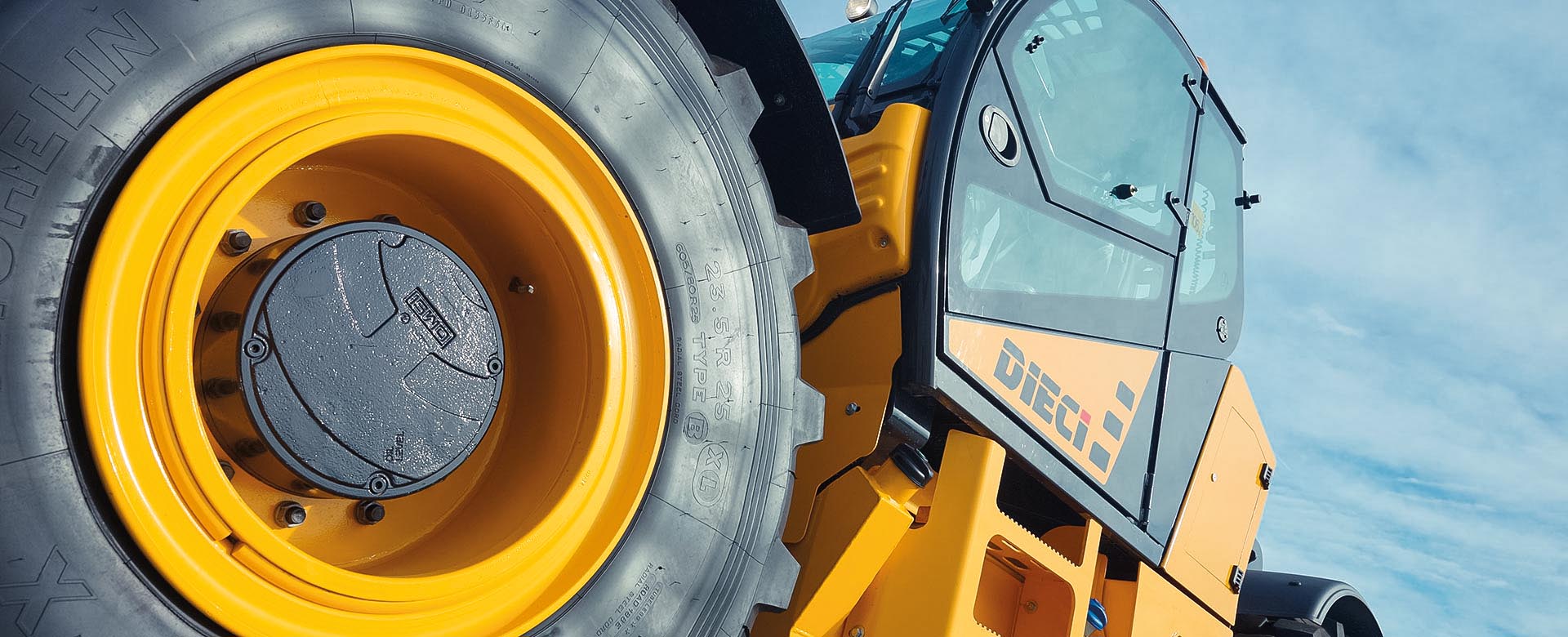

Tires
Standard Tires
18R22,5″”

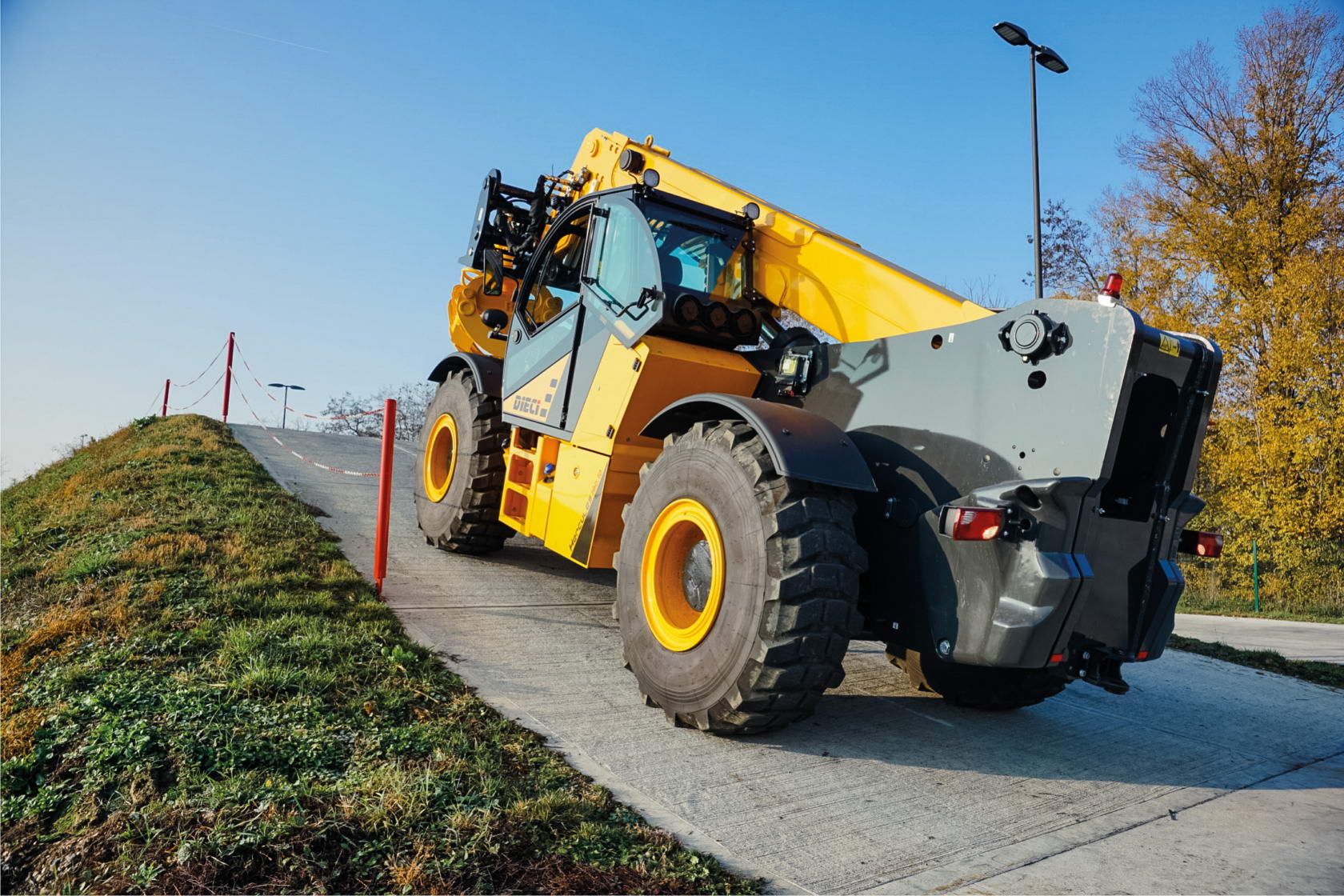

2-SPEED HYDROSTATIC TRANSMISSION

Electronic control: maximum forward travel precision even at full speed.

1st gear at 19 km/h

Maximum speed 40 Km/h

EASY AND INTUITIVE

All boom movements are controlled by a single-lever joystick, which also incorporates the direction selector (reverse shuttle – FNR) for intuitive and comfortable control.

Dashboard with clear instrument panel and well-distributed controls.

All vehicle control functions are handled by a single control unit that measures the best working parameters through an advanced diagnostic system.

The two Load Sensing – Flow Sharing hydraulic technologies ensure more simultaneous movements and greater response to controls, for more effective work.

VERSATILE AND FLEXIBLE

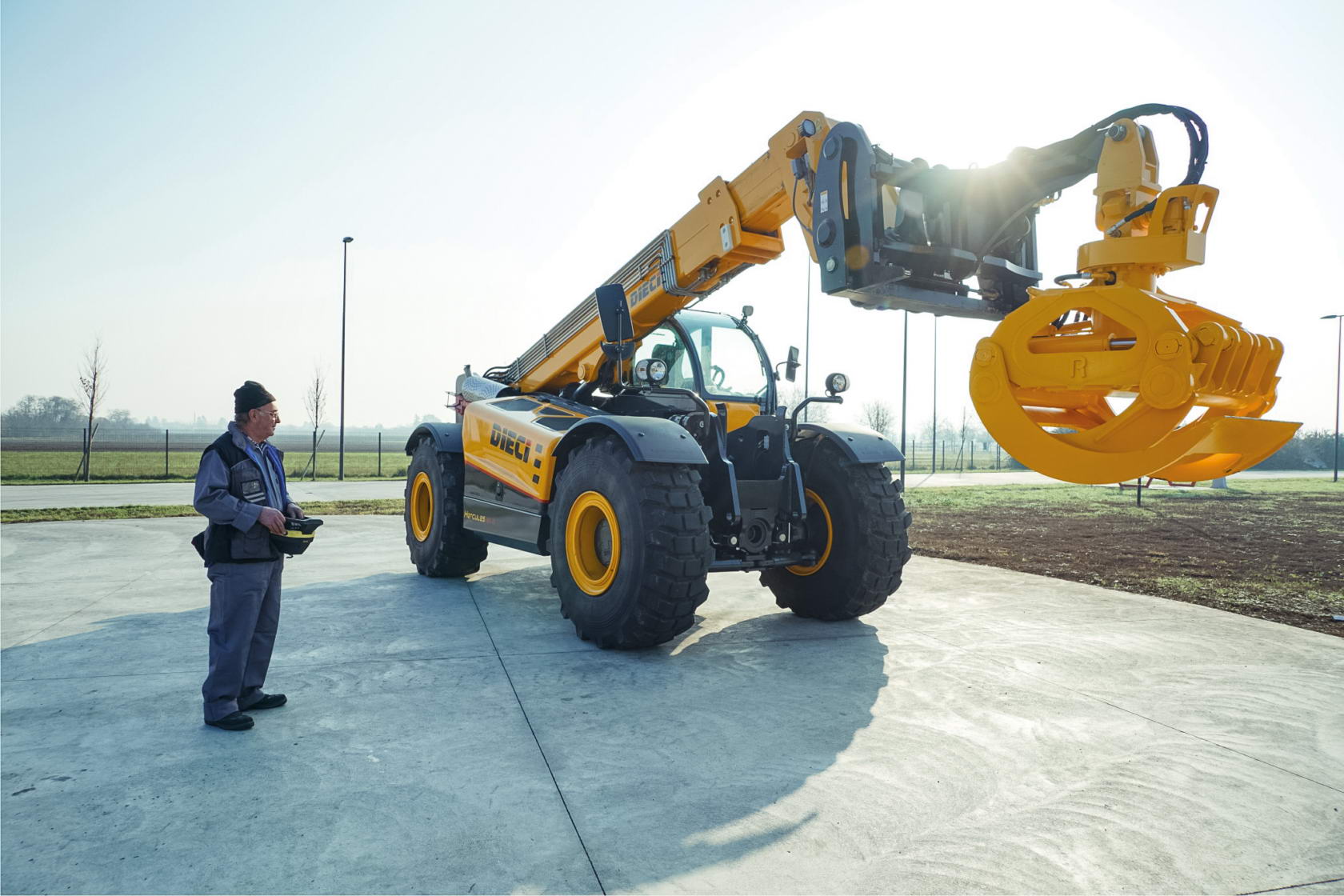

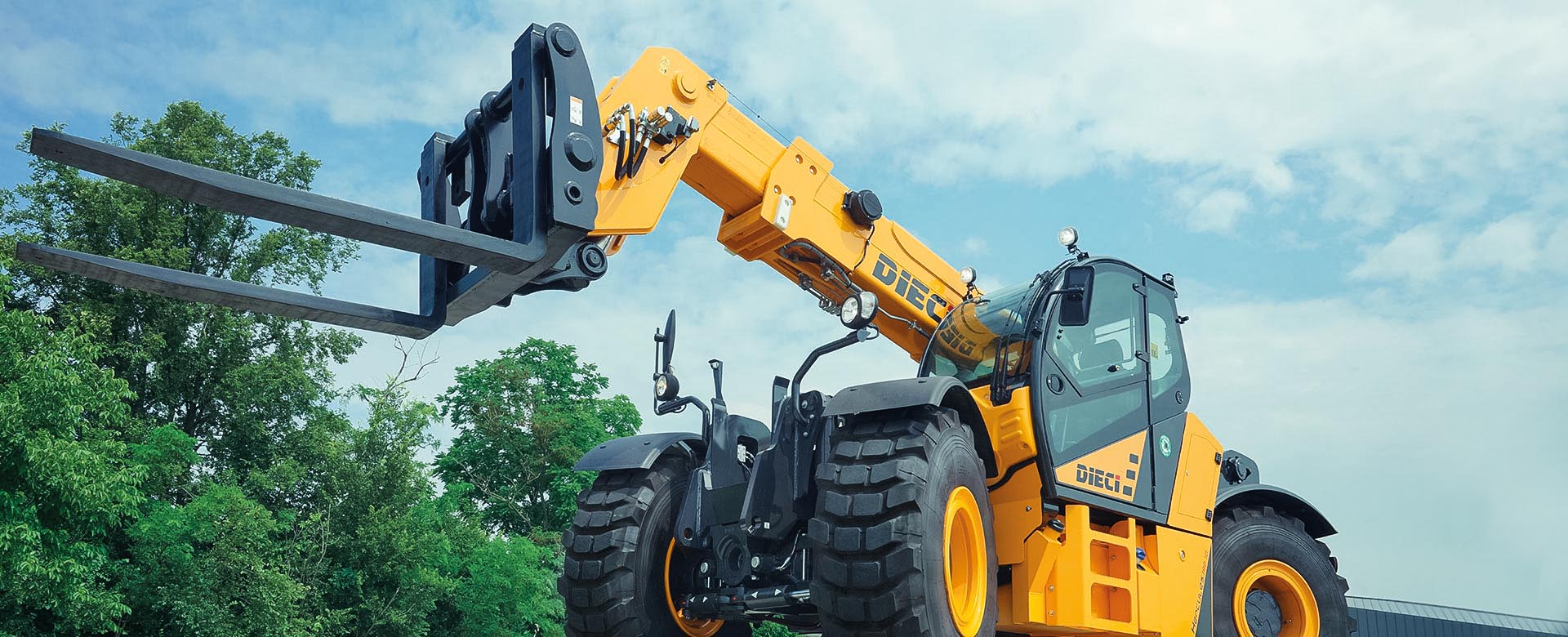

The Dieci telehandlers have been designed to use the various equipment needed to carry out all the work required by a construction site: forks, loaders, lifting hooks, jibs with winches, grippers, material baskets, mixing buckets, concrete ladles, sweepers, salt spreader, snowplow blades.

Automatic equipment recognition: the vehicle configures itself automatically recognizing the equipment attached.
