SAMSON
75.10
7500 kg

MAXIMUM CAPACITY – MAXIMUM FLOW RATE

9,65 m

MAXIMUM LIFTING HEIGHT

93 kW (125 HP)

MAXIMUM POWER

SAMSON

SONY DSC
SONY DSC
SONY DSC
SONY DSC

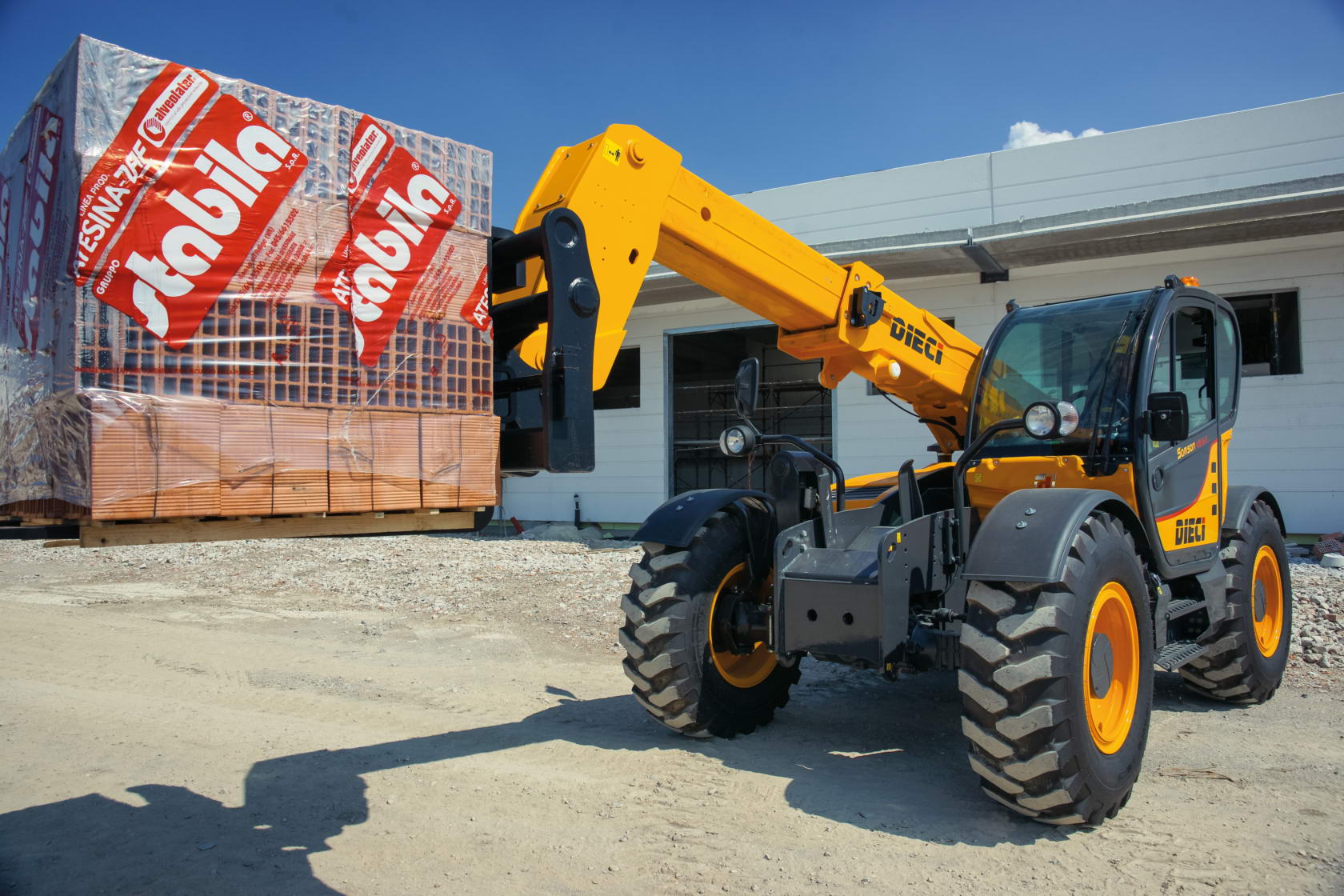

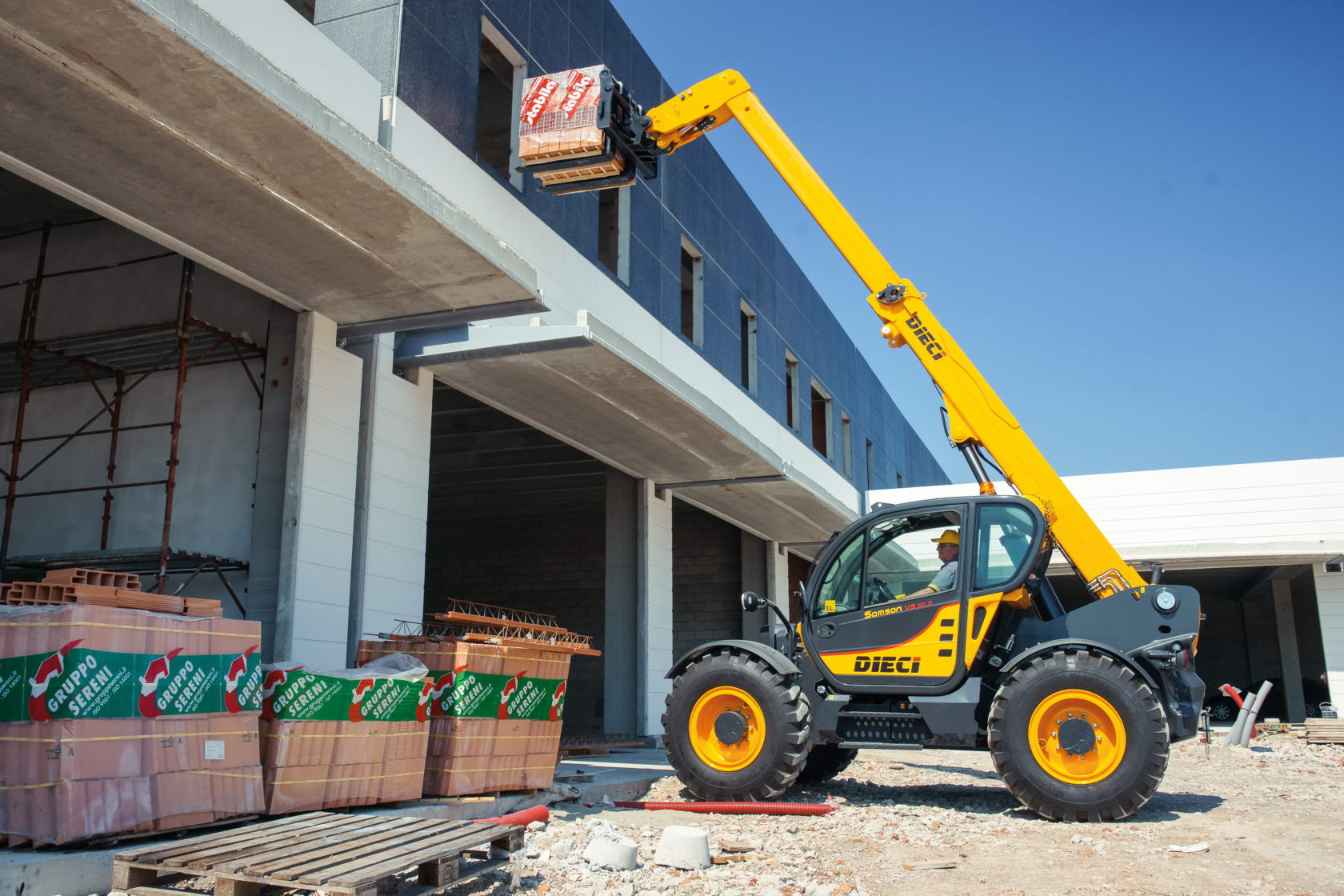

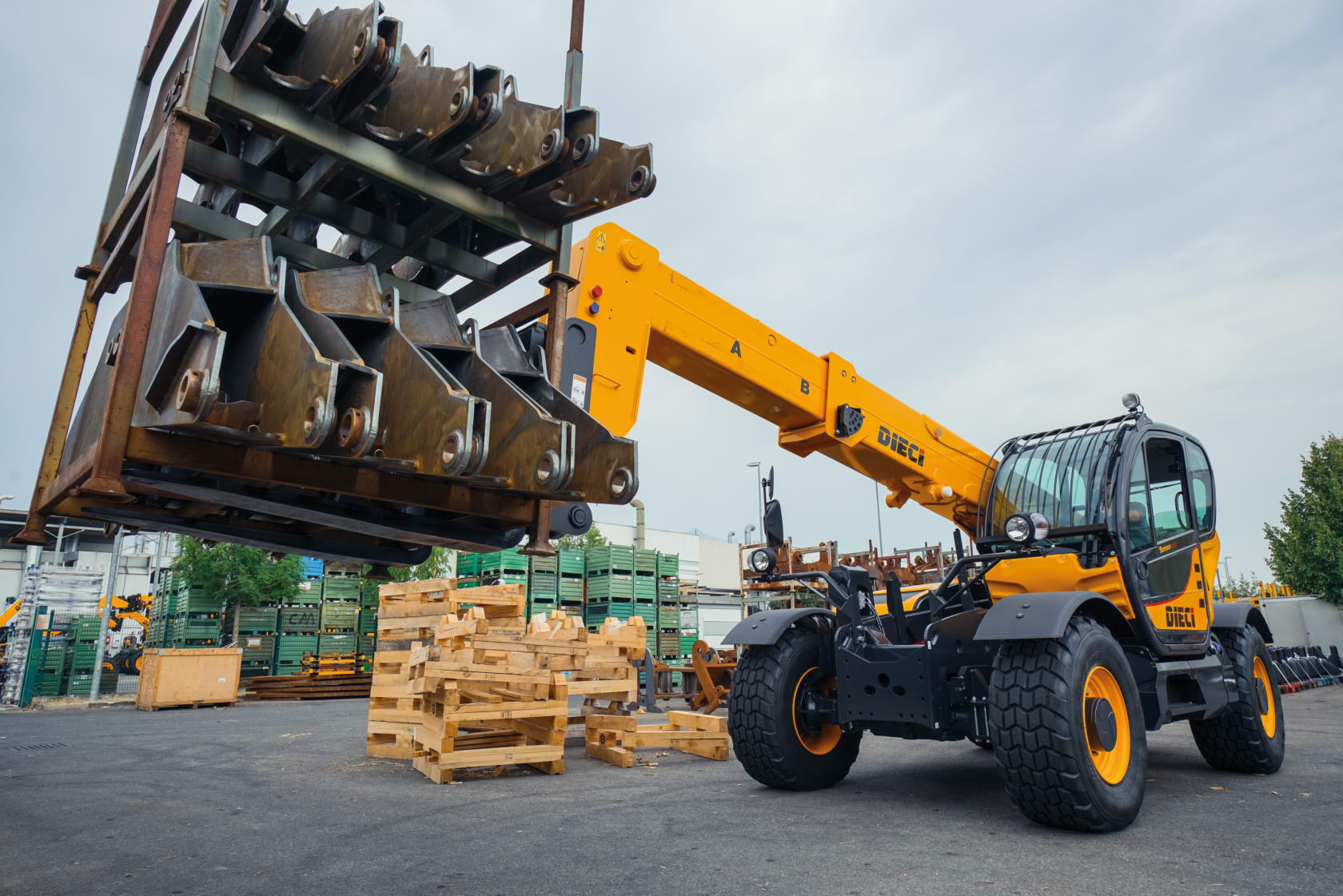

The Samson family consists of extremely strong and compact telehandlers, its outstanding power and agility qualities make it particularly suitable for heavy and intensive work both in the construction and industrial sectors.

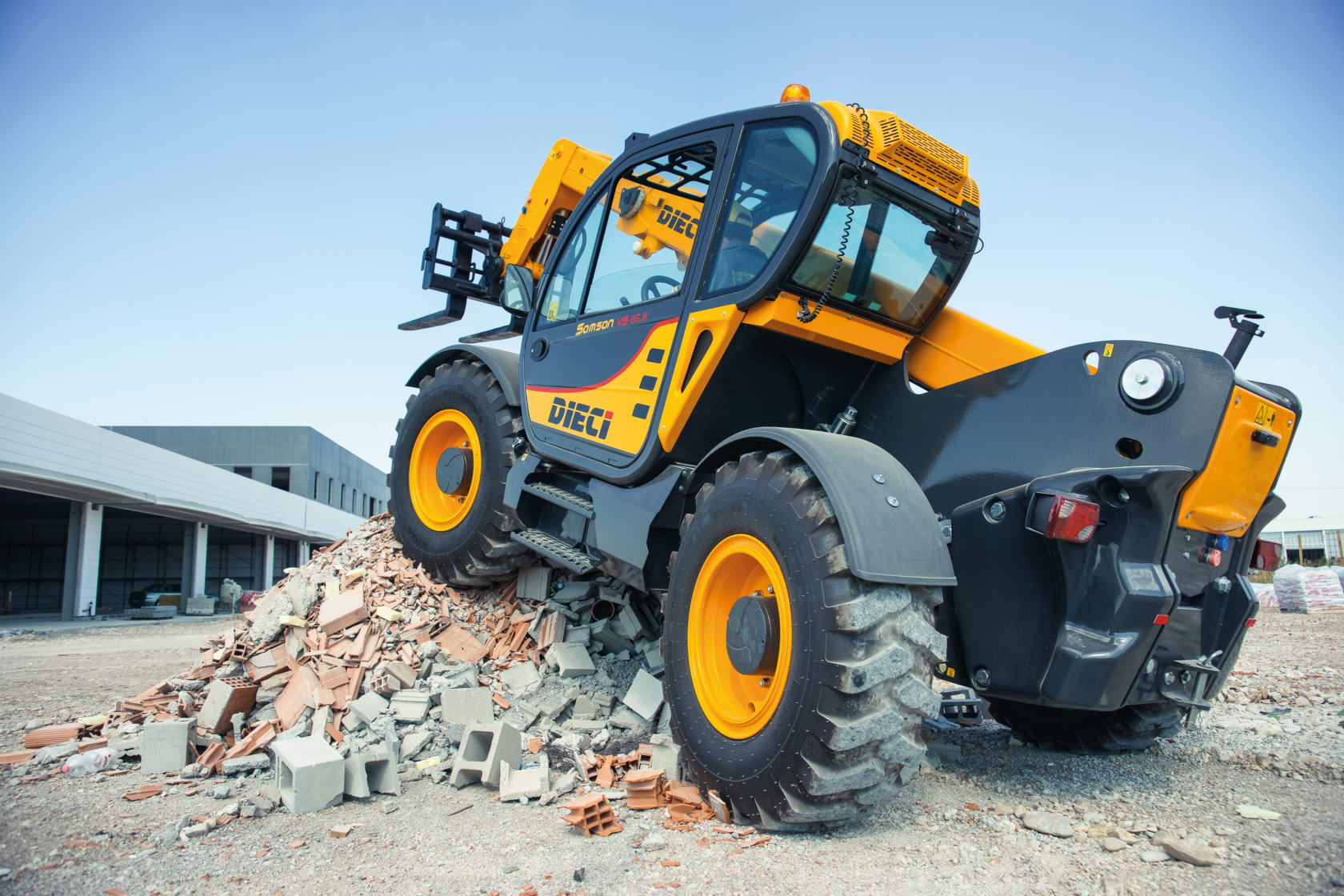

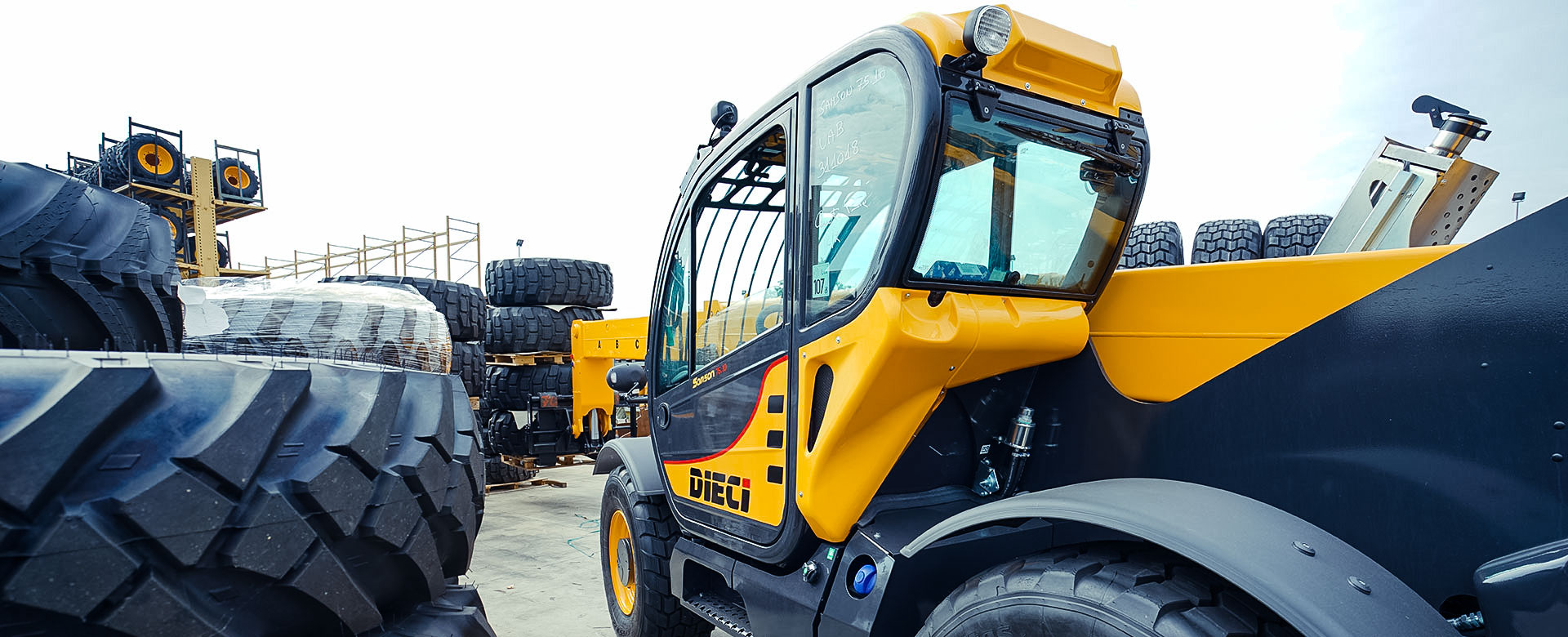

SAMSON in particular stands out for power, strength and speed, the ideal vehicle for heavy industry in general, and for great lifting capacity needs. The cab, ROPS-FOPS approved, designed to ensure a high level of comfort, can be equipped with an enhanced air conditioning system which allows perfect air circulation inside the cab.
The on-board computer with LCD display, allows the operator to monitor all the vehicle operating parameters.

Model

Dimension
Height from ground
420 mm
Maximum Length
6021 mm
Cab Height
2490 mm
Tire Width
2380 mm
While Curve Radius
4400 mm

Mass
Unladen Weight
12100 kg

Performance
Maximum capacity – Maximum flow rate
7500 kg
Maximum lifting height
9,65 m
Maximum Height on Outriggers
9,65 m
Maximum Height on Wheels
9,5 m
Pull Out Force
5700 daN
Towing Force
7300 daN
Maximum Speed
30 km/h

Engine
Brand
FPT
Fueling
Diesel
Displacement
4485 cm3
Maximum Power
93 kW (125 HP)
Emission Standard
Stage IIIA/Tier 3

Hydraulic Circuit
Hydraulic Pump Capacity
130 l/Min
Maximum Operating Pressure
26 MPa

Transmission
Transmission Type
Hydrostatic with variable displacement pump

Tires
Standard Tires
18×22,5″”

2-SPEED HYDROSTATIC TRANSMISSION

Electronic control: maximum forward travel precision even at full speed.

1st gear at 19 km/h

Maximum speed 40 Km/h

EASY AND INTUITIVE

All boom movements are controlled by a single-lever joystick, which also incorporates the direction selector (reverse shuttle – FNR) for intuitive and comfortable control.

Dashboard with clear instrument panel and well-distributed controls.

All vehicle control functions are handled by a single control unit that measures the best working parameters through an advanced diagnostic system.

The two Load Sensing – Flow Sharing hydraulic technologies ensure more simultaneous movements and greater response to controls, for more effective work.

VERSATILE AND FLEXIBLE

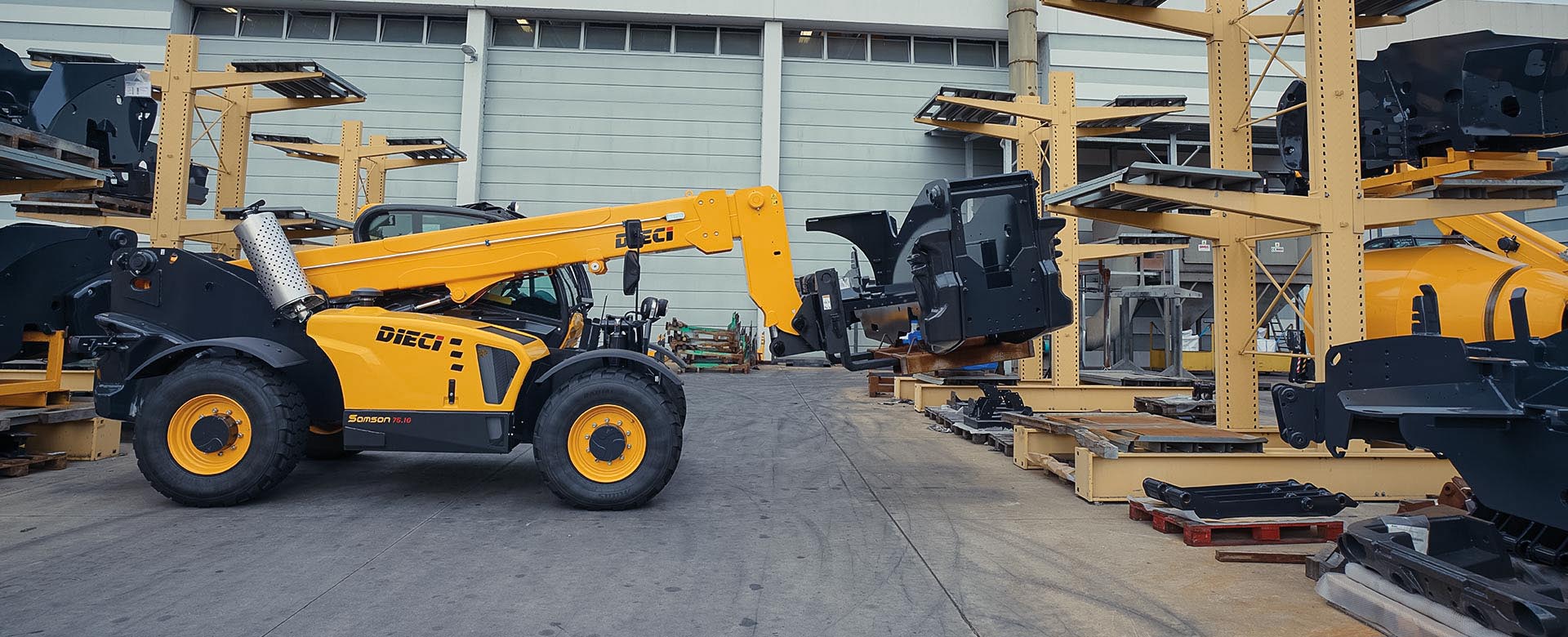

The Dieci telehandlers have been designed to use the various equipment needed to carry out all the work required by a construction site: forks, loaders, lifting hooks, jibs with winches, grippers, material baskets, mixing buckets, concrete ladles, sweepers, salt spreader, snowplow blades.

Automatic equipment recognition: the vehicle configures itself automatically recognizing the equipment attached.
