ICARUS
MAXIMUM CAPACITY – MAXIMUM FLOW RATE
MAXIMUM LIFTING HEIGHT
MAXIMUM POWER
ICARUS

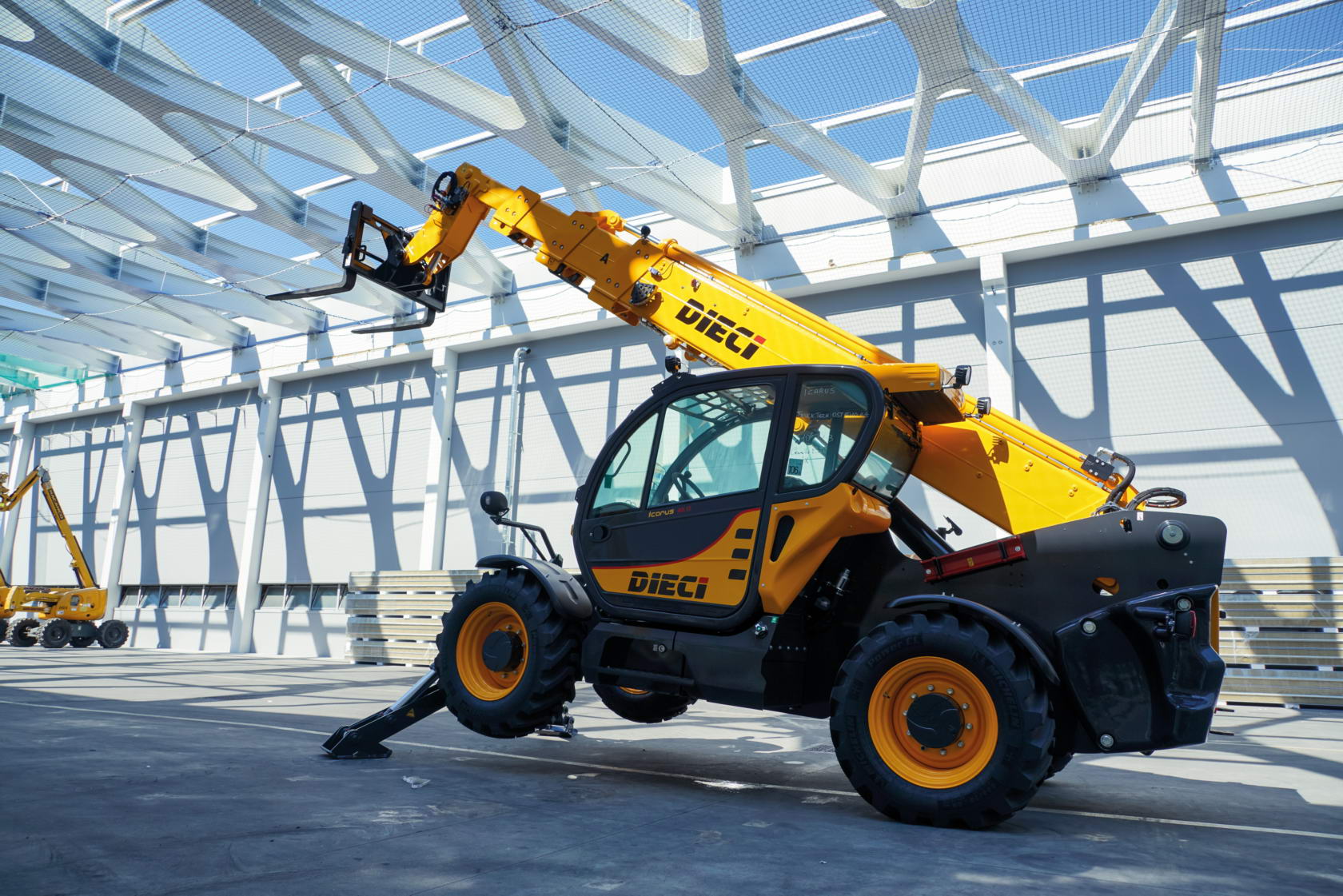

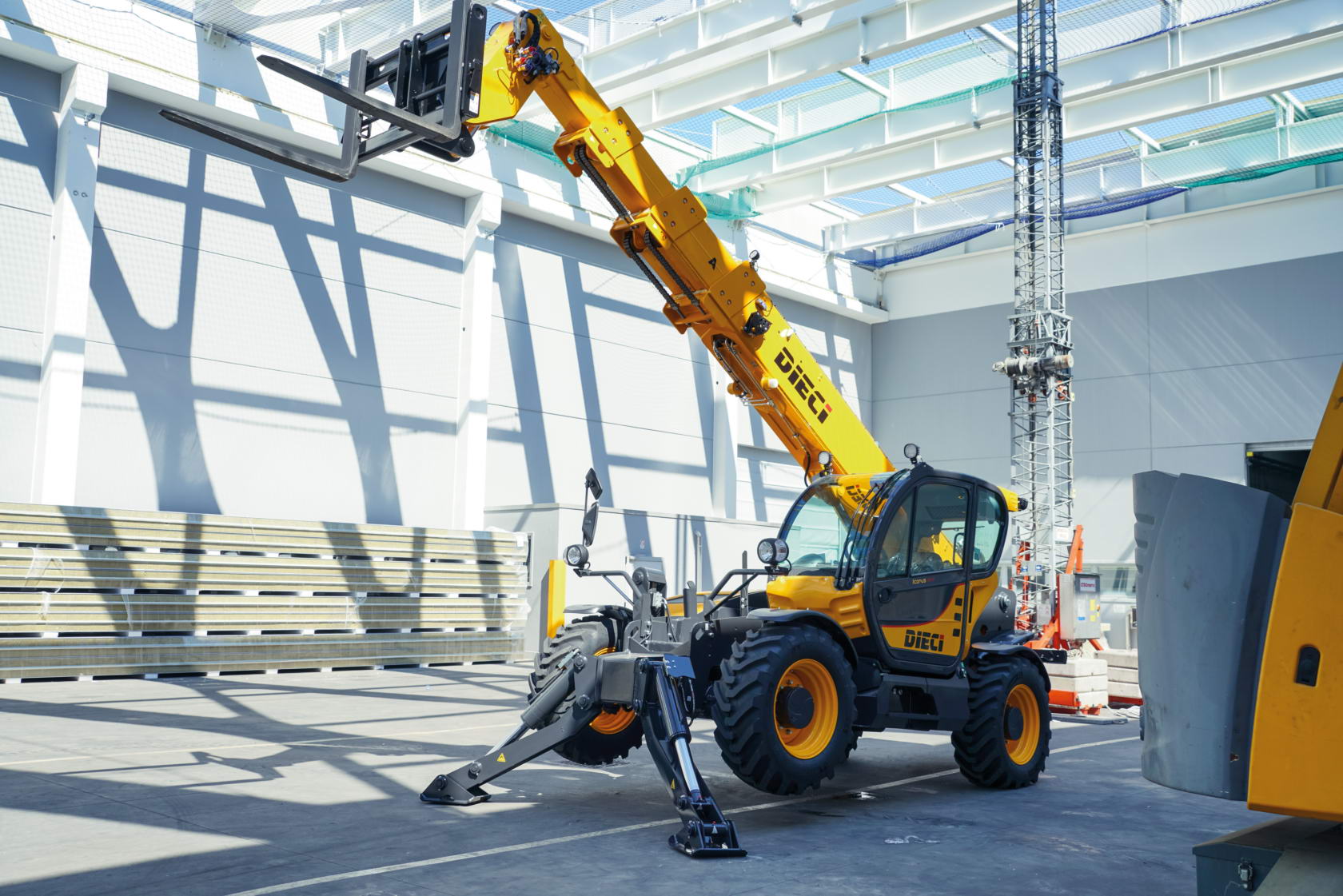

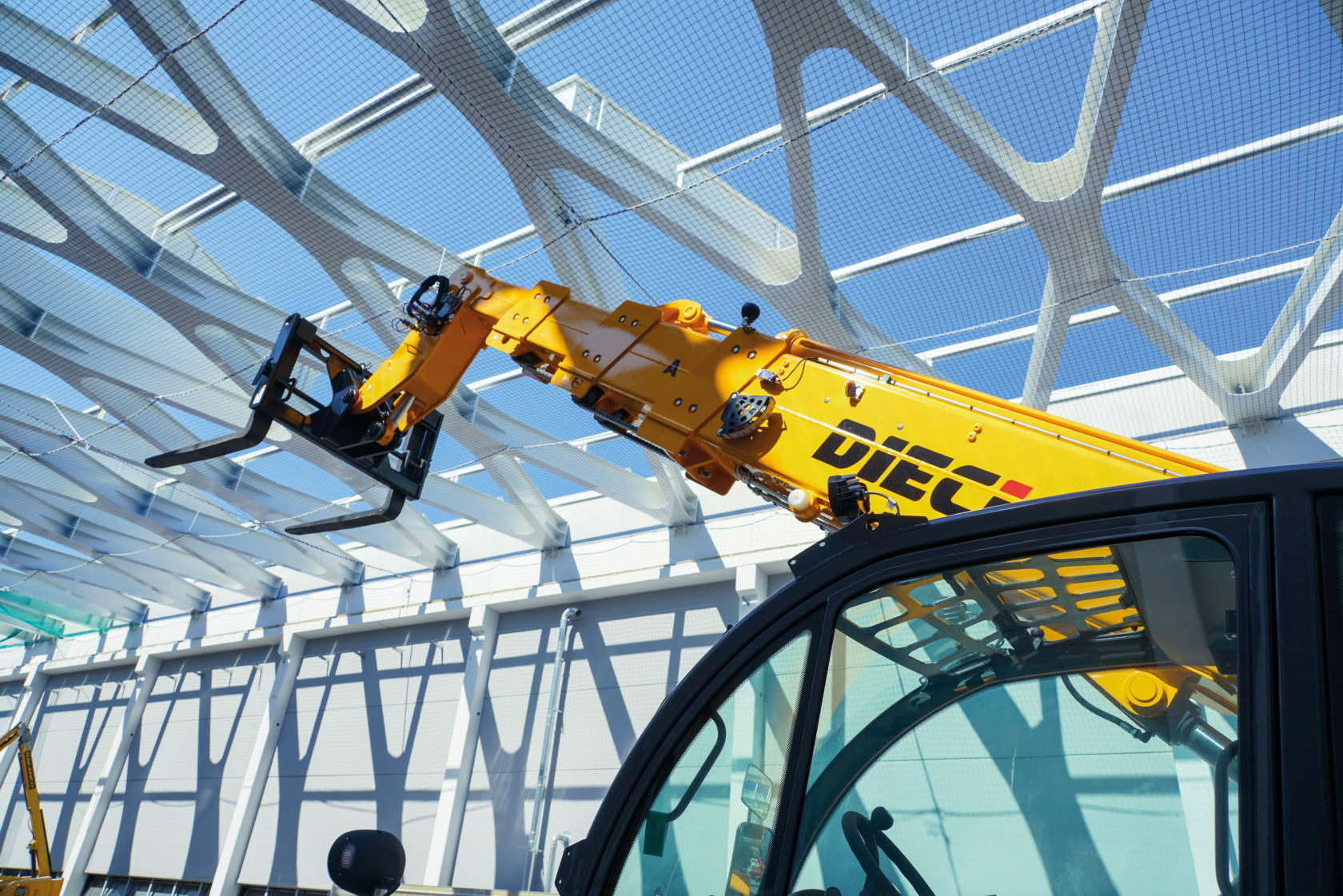

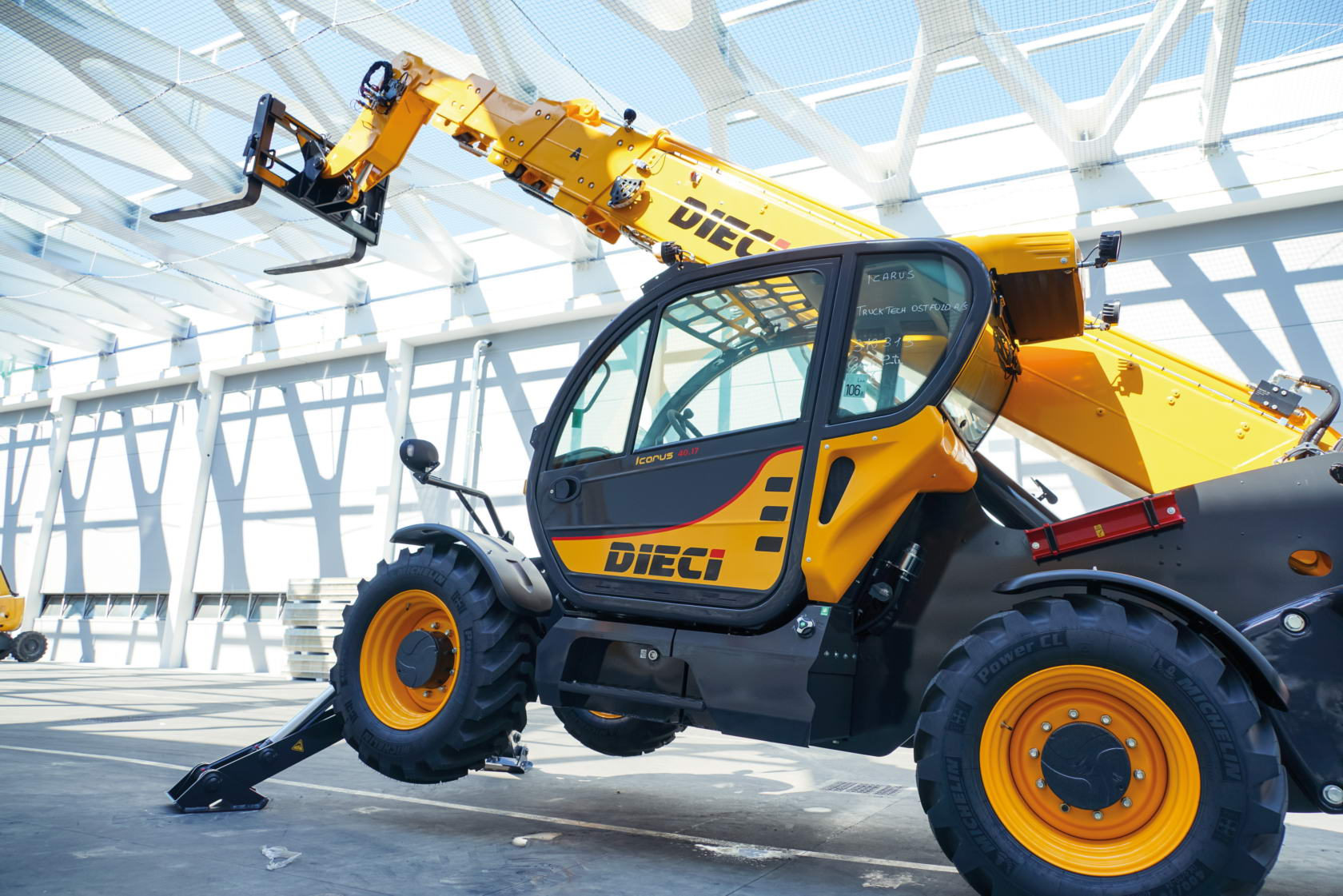

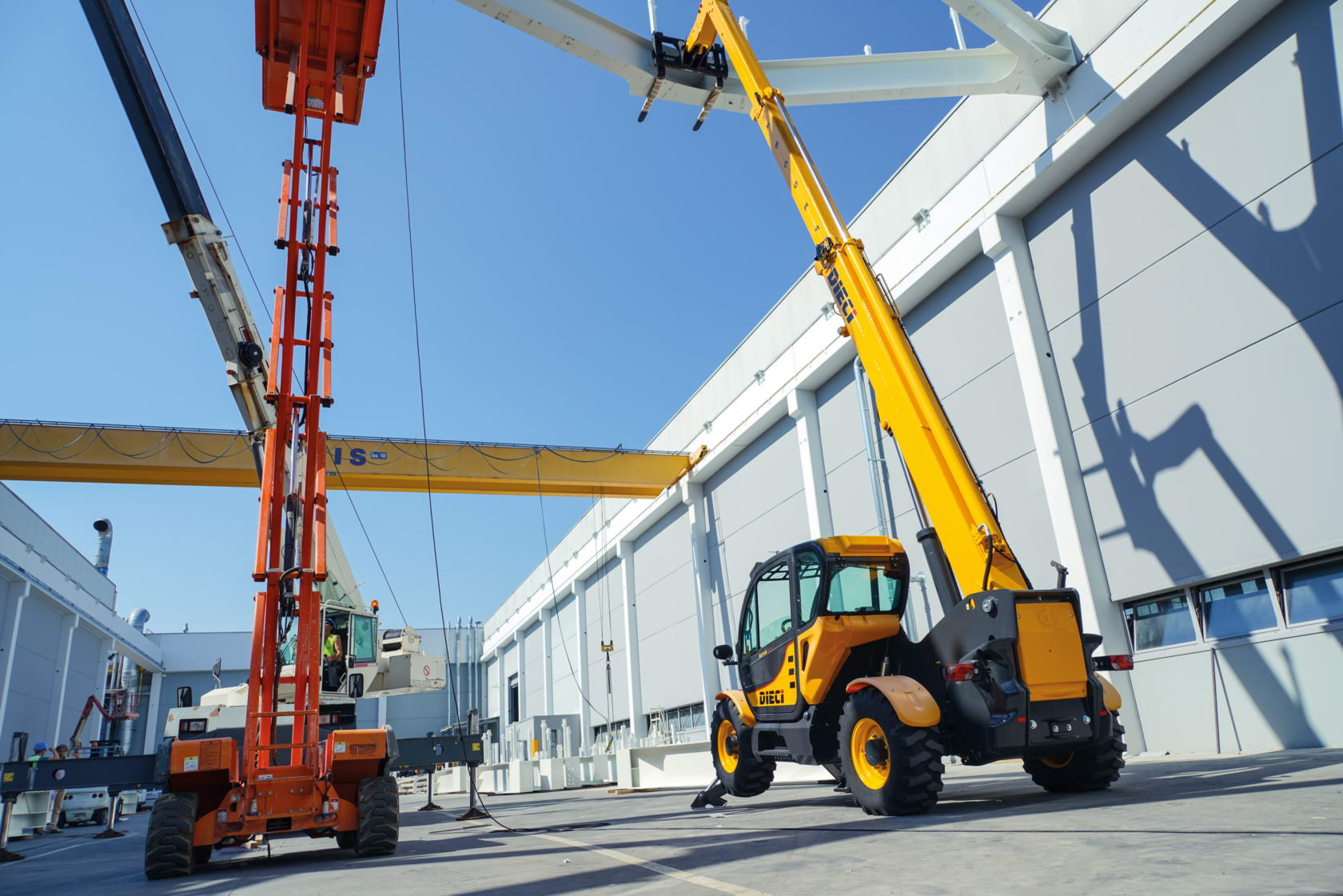

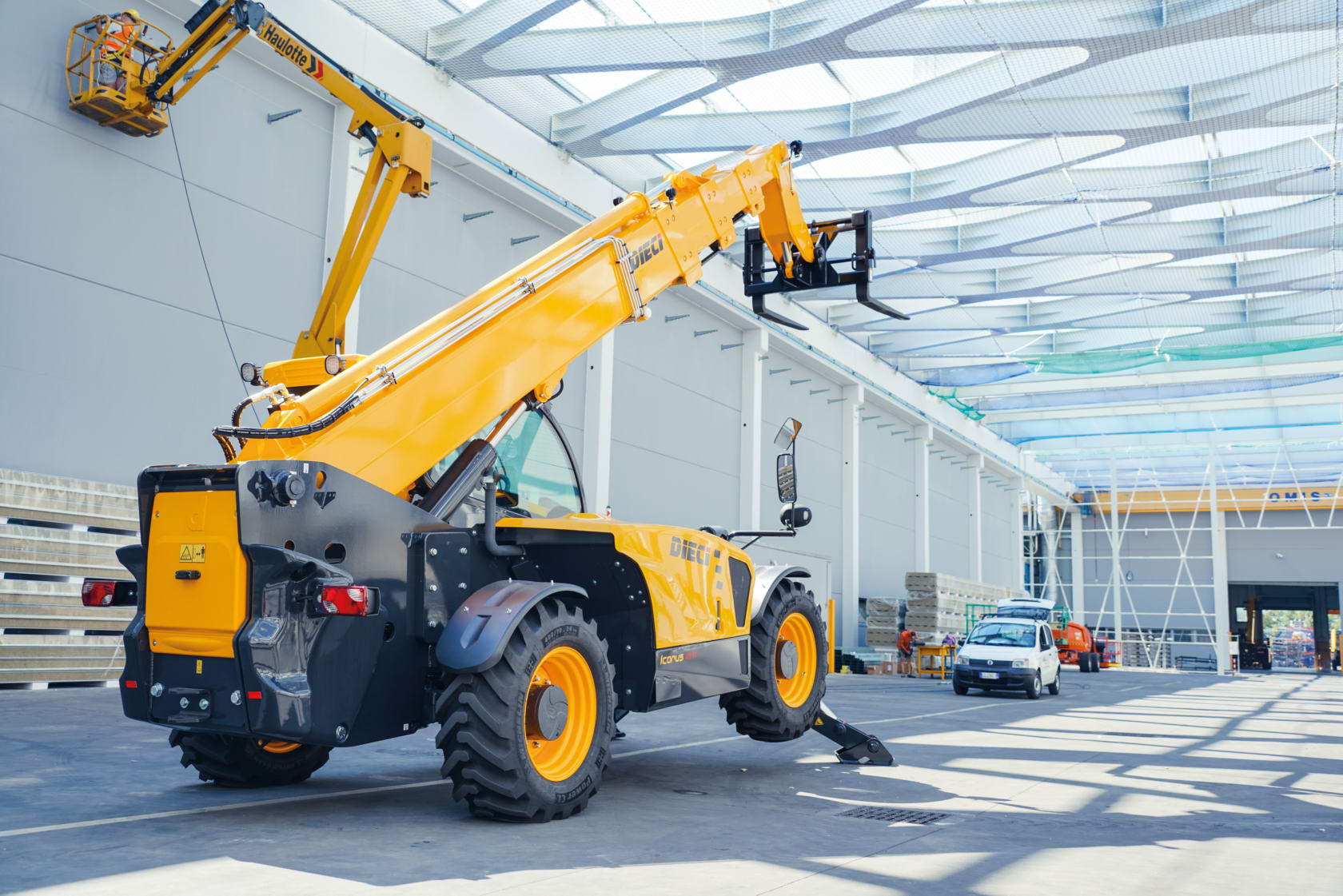

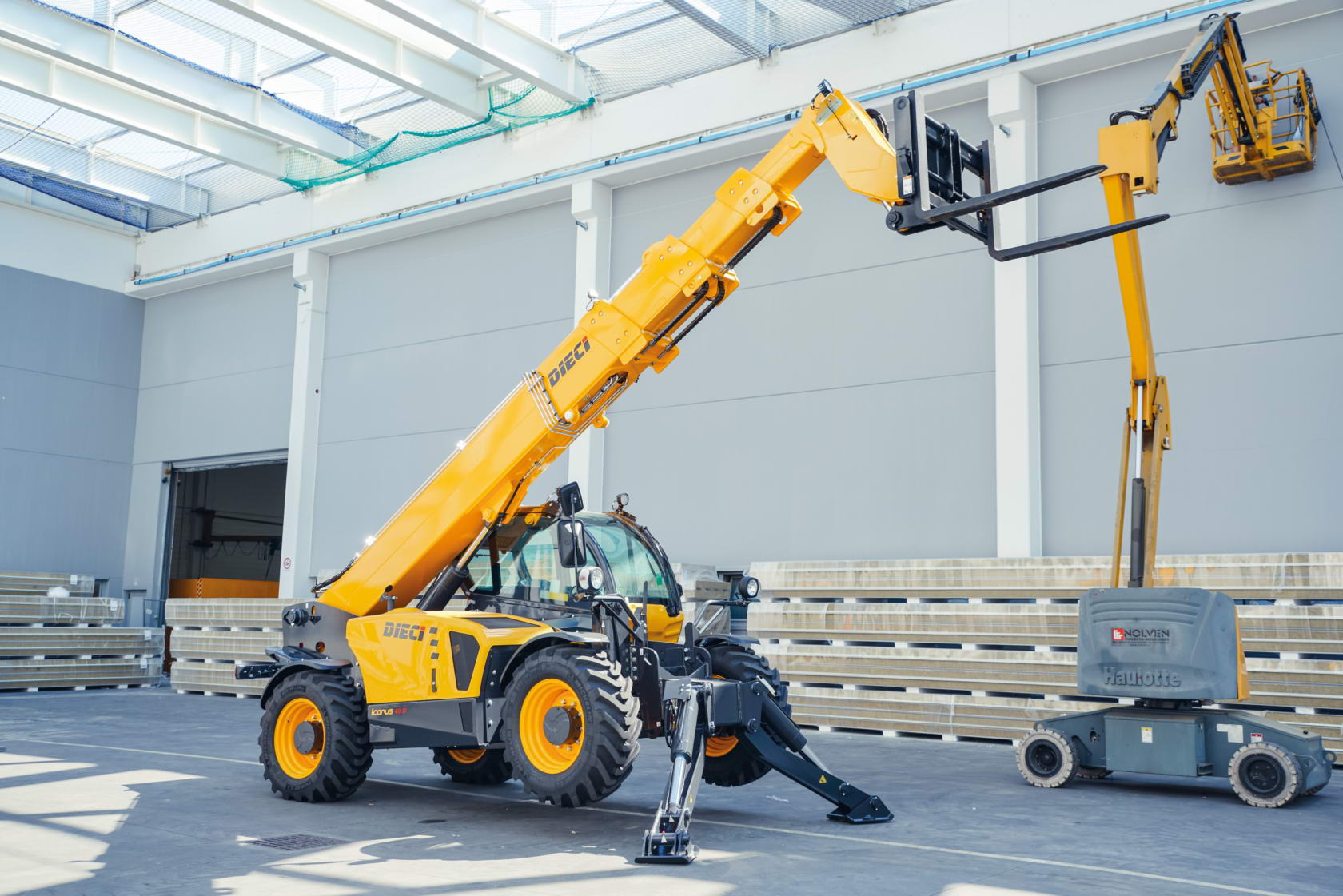

ICARUS is a family of telehandlers particularly suitable for large jobs in the construction and industry sectors, thanks to its great strength, power and lifting heights.
The engine hood has been designed to reduce the noise emission and optimize heat dissipation, furthermore, since it has to operate in workplaces which are often dusty, the ICARUS versions are equipped with separator pre-filter applied to the air filter, which prevents the entrance of dust and abrasive particles, allowing greater efficiency and longer engine life.

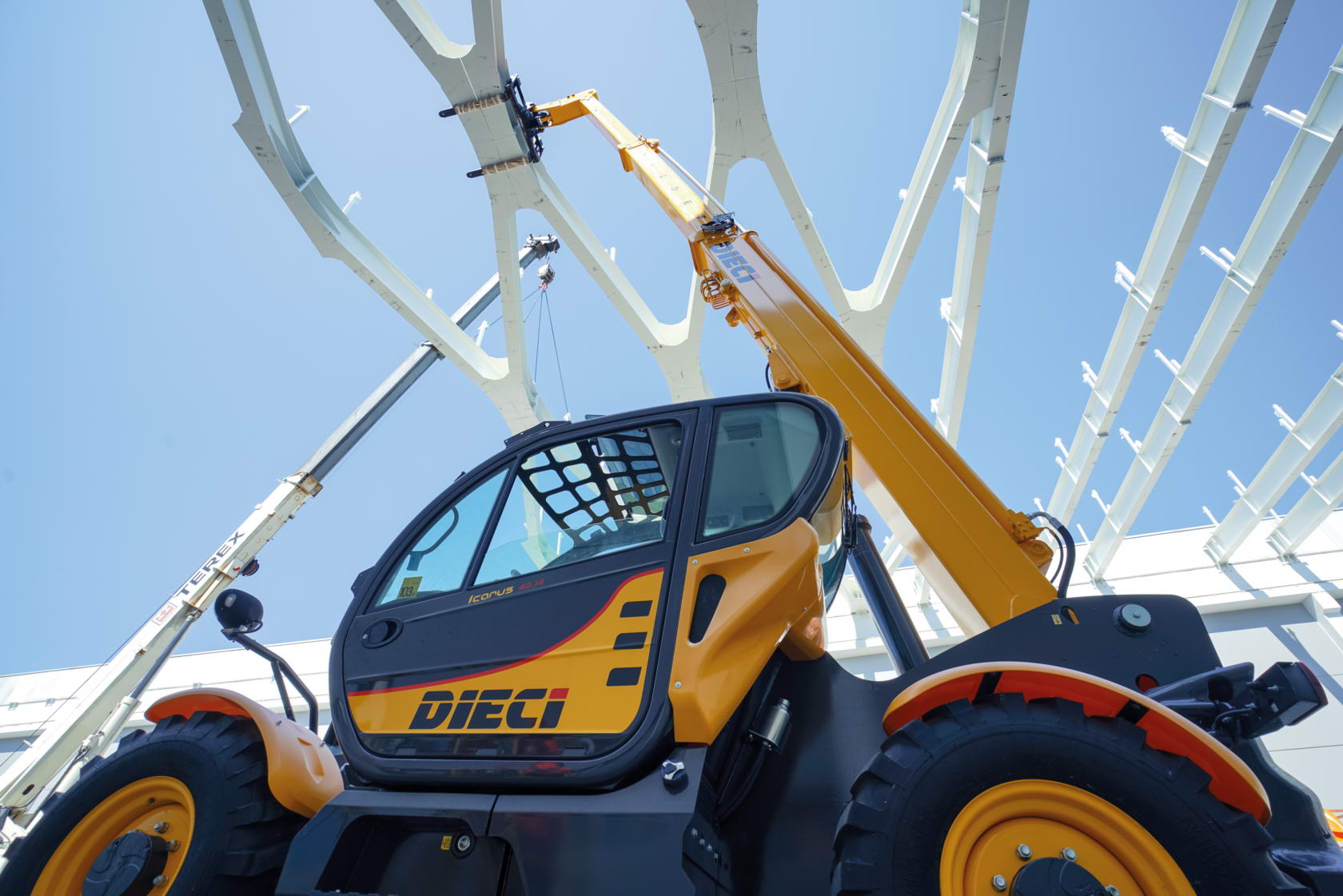

The cab, ROPS-FOPS approved, equipped with every safety device and designed to ensure a high level of comfort, can be equipped with an enhanced air conditioning system which allows perfect air circulation inside the cab and digital speedometer.
To further enhance comfort, new seats with automatic suspension can be installed on request.
Model
Dimension
Height from ground
390 mm
390 mm
Maximum Length
6275 mm
6275 mm
Cab Height
2550 mm
2550 mm
Tire Width
2360 mm
2360 mm
While Curve Radius
4400 mm
4400 mm
Mass
Unladen Weight
12260 kg
12260 kg
Performance
Maximum capacity – Maximum flow rate
4000 kg
4000 kg
Maximum lifting height
16,6 m
16,6 m
Maximum Height on Outriggers
16,6 m
16,6 m
Maximum Height on Wheels
13,2 m
13,2 m
Pull Out Force
5700 daN
5700 daN
Towing Force
7300 daN
7300 daN
Maximum Speed
35 km/h
35 km/h
Engine
Brand
FPT
FPT
Fueling
Diesel
Diesel
Displacement
4485 cm3
4485 cm3
Maximum Power
74 kW (99 HP)
74 kW (99 HP)
Emission Standard
Stage IIIA/Tier 3
Stage IIIA/Tier 3
Hydraulic Circuit
Hydraulic Pump Capacity
130 l/Min
130 l/Min
Maximum Operating Pressure
25 MPa
25 MPa
Transmission
Transmission Type
Hydrostatic with variable displacement pump
Hydrostatic with variable displacement pump
Tires
Standard Tires
400/70×24″”
400/70×24″”
2-SPEED HYDROSTATIC TRANSMISSION
Electronic control: maximum forward travel precision even at full speed.
1st gear at 19 km/h
Maximum speed 40 Km/h
EASY AND INTUITIVE
All boom movements are controlled by a single-lever joystick, which also incorporates the direction selector (reverse shuttle – FNR) for intuitive and comfortable control.
Dashboard with clear instrument panel and well-distributed controls.
All vehicle control functions are handled by a single control unit that measures the best working parameters through an advanced diagnostic system.
The two Load Sensing – Flow Sharing hydraulic technologies ensure more simultaneous movements and greater response to controls, for more effective work.
VERSATILE AND FLEXIBLE
The Dieci telehandlers have been designed to use the various equipment needed to carry out all the work required by a construction site: forks, loaders, lifting hooks, jibs with winches, grippers, material baskets, mixing buckets, concrete ladles, sweepers, salt spreader, snowplow blades.
Automatic equipment recognition: the vehicle configures itself automatically recognizing the equipment attached.
