Brand: Airo
V-Stock Picker Range
Optional A-Electrical Range V6 E Max Platform Height mm 3500 Max Working Height mm 5500 Length mm 1370 Width mm 810 Stowed Machine Hight mm 1510 Max. Lifting Loading Platform Capacity Kg 90 Max. Chage Capacity Kg 120 Max. Ground-Loading Compatement Capacity KG 130 Total Weight Kg 780
V-Vertical Mask Range
Optional A-Electrical Range V8E V10E Total Capacity kg 200 200 Max Platform Height mm 6100 7860 Max Working Height mm 8100 9860 MAx Working Outreace m 3.30 3.30 Degree Turet Rotation 355° 355° Battrey V/ah 24/280 24/280 Gradeability % 25 25 Total Weight Kg 2720 2800
R-Range (Spider)
Optional A-Electrical Range R13 DC R17 DC Total Capacity kg 200 200 Max Working Height m 13.3 16.5 Max Working Outrech m 6.4° 6.5° Degree Turet Rotation (not-continuos) 320° 320° Power Engine Honda lGX440 Honda lGX440 Oil Tank Capacity I 28 28 max Hydrolic Presure bar 210 210 Traction Speed (Fast) K/h 1.12 1.12 Gradeability…

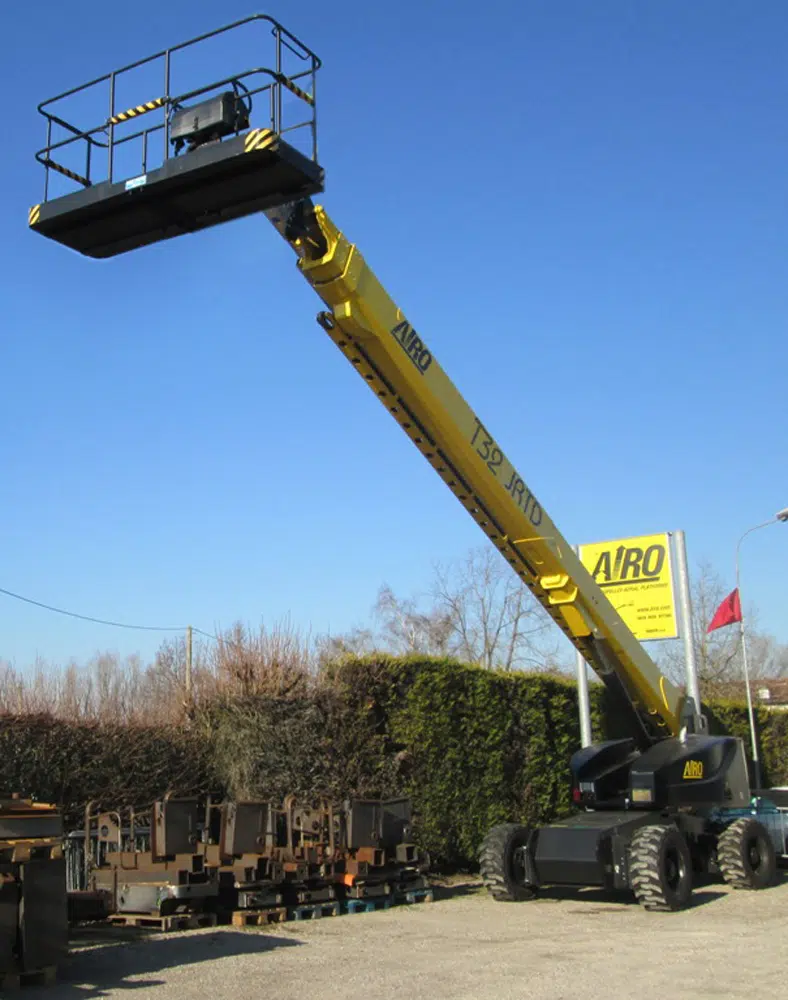

T-Diesel 4WD Range
Optional A-Electrical Range T32 RTD T34 JRTD Max. Platfoirm Height mm 30000 32000 Max Working Height mm 32000 34000 Capacity kg 230 230 Max Working Outreach m 0 24,0 Degree Turret Rotation (Continuouse) 360° 360° Hydrolic Cage Rotation 90° + 90° 90° + 90° Staat Up Battery V/Ah Gradeability % Total weight kg
A-Diesel 4WD Range
Optional A-Diesel 4WD Range A21 JRTD A23 JRTD Max. plaform height mm 18550 21100 Max., Working Height mm 20550 23100 Capacity kg 230 230 Max. working Outreach m 11.25 13.90 Up & Over Clearrance m 9.4 9.4 Degree Turet Rotation (Contiuose) 360° 360° Hydrolic Cage Rotation 90° 90° Start Up battery V/ah 12/180 12/180 Gradeability…
A-Diesel 4WD Range
Optional A-Diesel 4WD Range A18 JRTD(NUOVA) Max. plaform height mm 16450 Max., Working Height mm 18450 Total Capacity kg 400/300 Max. working Outreach m 9.2 Degree Turet Rotation 355° Hydrolic Cage Rotation 180° Power Diesel Starter battery V/ah 12/135 Gradeability % 40 Total Weight kg 8530
A-Diesel 4WD Range
Optional A-Diesel 4WD Range A16 JRTD A18 JRTD Max Platform Heigth mm 14000 15750 Max. Working Height mm 16000 17760 Total Capacity kg 230 230 Max Working Outreache m 8,1 9,9 Degree Turet Rotation 180° + 180° 180° + 180° Hydrolic Cage Rotation 70° + 70° 70° + 70° Power Diesel 36kw Diesel 36kw Starter…
A-Diesel 4WD Range
Optional A-Diesel 4WD Range A12 JRTD A15 JRTD Total Capacity kg 230 230 Working Height m 12,20 15,10 Max Working Outreach m 7.10 8.80 Degree Turret Rotation 370° 370° Hydrolic Cage Rotation 90° + 90° 90° + 90° Cage Dimension mm 800×1400 800×1400 Power Diesel engine Diesel engine Starter battery V/ah 12/132 12/132 Oil Tank…
A-BI ENERGY Range
Optional A-Electrical Range A12 ED A13 JED A16 JED A18 JED Max. platfoirm Height mm 10000 11100 14000 15760 Max Working Height mm 12000 13100 16000 17760 Total Capacity kg 200 200 230 230 Max Working Outreach m 6,4 8,1 8,1 9,9 Turret Rotation 180° 180° 180° 180° Hydrolic Cage Rotation Option 70° 70° 70°…
A-Electrical Range
Optional A-Electrical Range A21 JRTE A23 JRTE Max Platform Height mm 18550 21100 Max Working Height mm 20550 23100 Total Cpacity kg 230 230 Max working outreach m 11.25 13.90 Up & over clearance m 9.4 9.4 Degree turret rotation (continuous) 360° 360° Hydrolic Cage Rotation 90° 90° Battery Capcity V/Ah 48/750 48/750 Gradeability %…
